CFPT0810LD
Iwọn
|
Awoṣe
|
CFPT0608LD | CFPT0608LDS | CFPT0810LDS | CFPT1012LD | CFPT1012LDS | CFPT1214LD | CFPT1214LDS |
| Ṣiṣẹ iga | 8m | 8m | 10m | 12m | 12m | 14m | 14m |
| Agbara Fifuye | 450kg | 450kg | 450kg | 320kg | 320kg | 320kg | 320kg |
| Ipele Iwon |
2.27 * 1.12m
|
2.27 * 1.12m
|
2.27 * 1.12m | 2.27 * 1.12m | 2.27 * 1.12m | 2.27 * 1.12m | 2.27 * 1.12m |
| Ìwò iwọn | 2470 * 1390m | 2782 * 1581mm | 2782 * 1581mm | 2470 * 1390mm | 2782 * 1581mm | 2470 * 1390mm | 2670 * 2130mm |
| Redio titan to kere julọ | 0m | 0m | 0m | 0m | 0m | 0m | 0m |
| Gbigbe motor | 48V / 4.5KW | 48V / 4.5KW | 48V / 4.5KW | 48V / 4.5KW | 48V / 4.5KW | 48V / 4.5KW | 48v / 4.5kw |
| Batiri | 8 * 6V / 225Ah | 8 * 6V / 225Ah | 8 * 6V / 225Ah | 8 * 6V / 225Ah | 8 * 6V / 225Ah | 8 * 6V / 225Ah | 8 * 6V / 225Ah |
| Ṣaja | 48V / 25A | 48V / 25A | 48V / 25A | 48V / 25A | 48V / 25A | 48V / 25A | 48V / 25A |
| Syeed pẹpẹ | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Ipele | 30% | 30% | 30% | 30% | 30% | 30% | 30% |
| Iwuwo | 2400KG | 2800KG | 2950KG | 2840kg | 3240kg | 3000kg | 3480kg |
| O pọju igun iṣẹ | 2 ° / 3 ° | 2 ° / 3 ° | 2 ° / 3 ° | 2 ° / 3 ° | 2 ° / 3 ° | 2 ° / 3 ° | 2 ° / 3 ° |
| Max nọmba ti osise | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Ipele itẹsiwaju Platform | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
Tọpinpin ipasẹ scissor ti ara ẹni ti a lepa le yara yara ati rirọ rin ati yi pada ni awọn ipo iṣẹ oriṣiriṣi, eyiti ko nilo isunki atọwọda, ko nilo ipese agbara ita, ati gbe Flexibly ati irọrun .O ṣe iṣẹ eriali diẹ rọrun ati daradara.
Tọpa gbigbe scissor ti ara ẹni ti a tọpinpin ni lilo pupọ fun awọn fifi sori ẹrọ awọn ẹrọ ati itọju ni awọn aaye wọnyi bi awọn aaye ikole, awọn idanileko, ile-itaja, ile ounjẹ, ibudo ọkọ oju-irin / ọkọ oju irin, awọn ile itura, papa ọkọ ofurufu, ibudo gaasi ati opo gigun ti afẹfẹ.

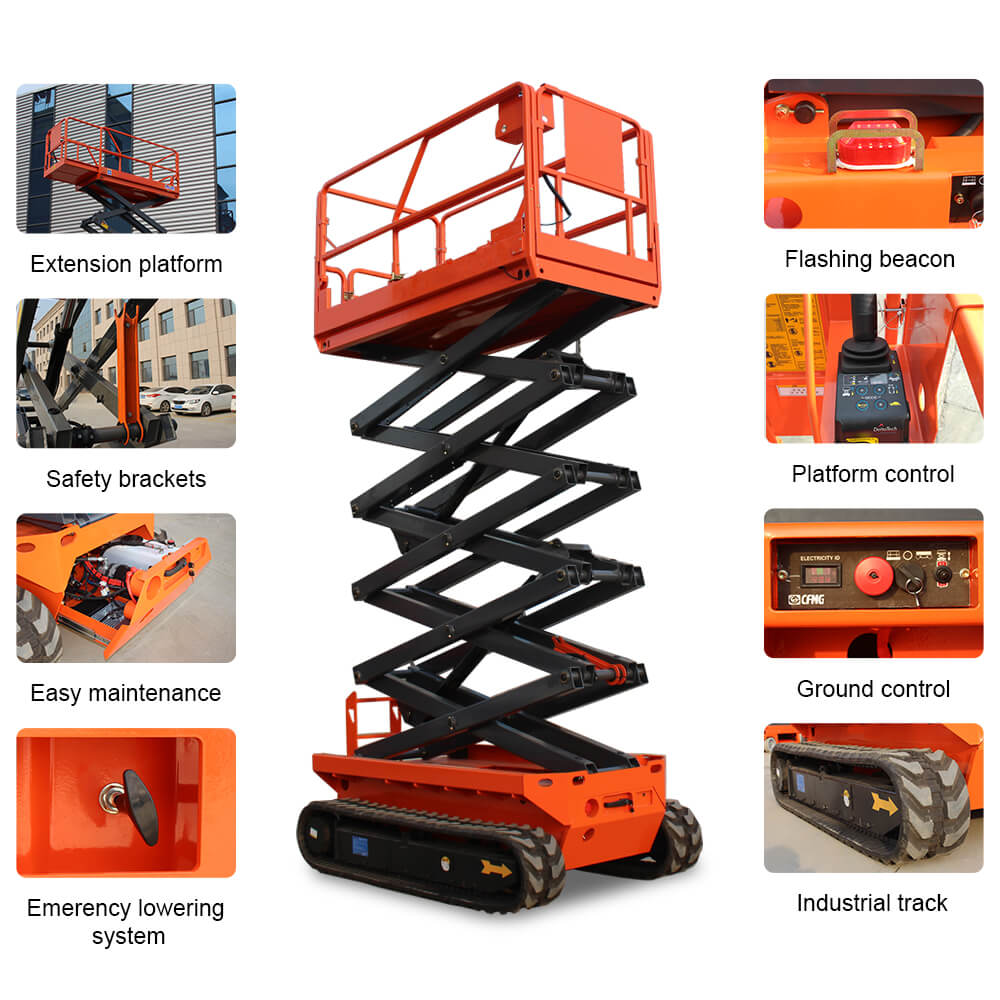

Awọn alaye aworan
●Awọn idari ti o yẹ
●Ẹnu ara-titiipa lori pẹpẹ
●Iwakọ ni giga ni kikun
●Taya ti kii ṣe ami, 2WD
●Laifọwọyi eto idaduro
●Bọtini iduro pajawiri
●Eto ẹri-bugbamu-tubing
●Eto sokale pajawiri
●Eto idanimọ eewọ
●Tẹ sensọ pẹlu itaniji
●Gbogbo itaniji išipopada
●Iwo
●Awọn akọmọ aabo
●Awọn apo-iwe Forklift
●Awọn ọna aabo kika
●Syeed Extendable
●Ṣaja ṣaja
●Imọlẹ ìmọlẹ
●Laifọwọyi Iho iho
