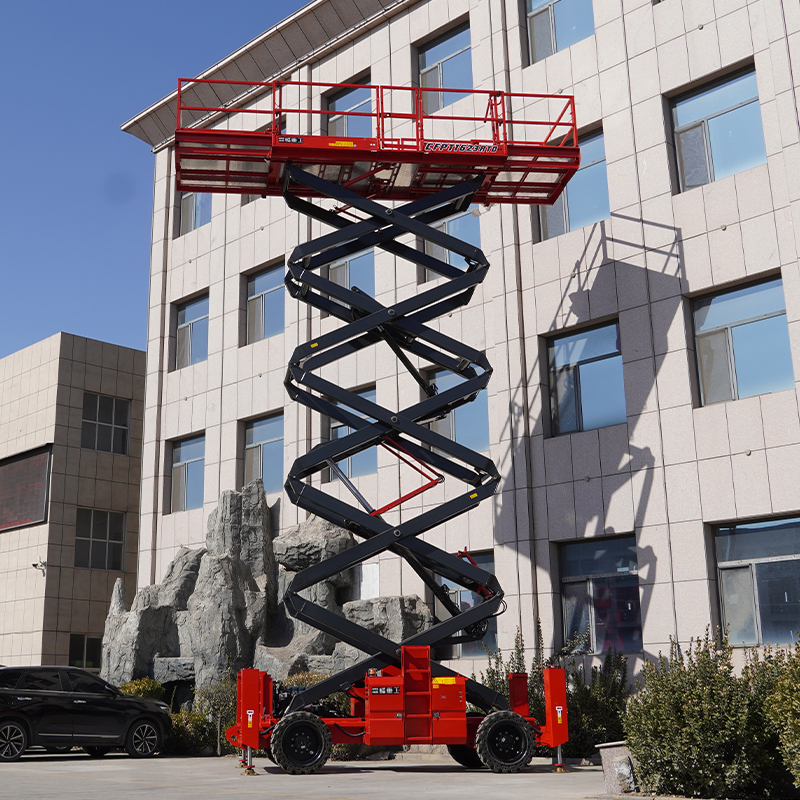

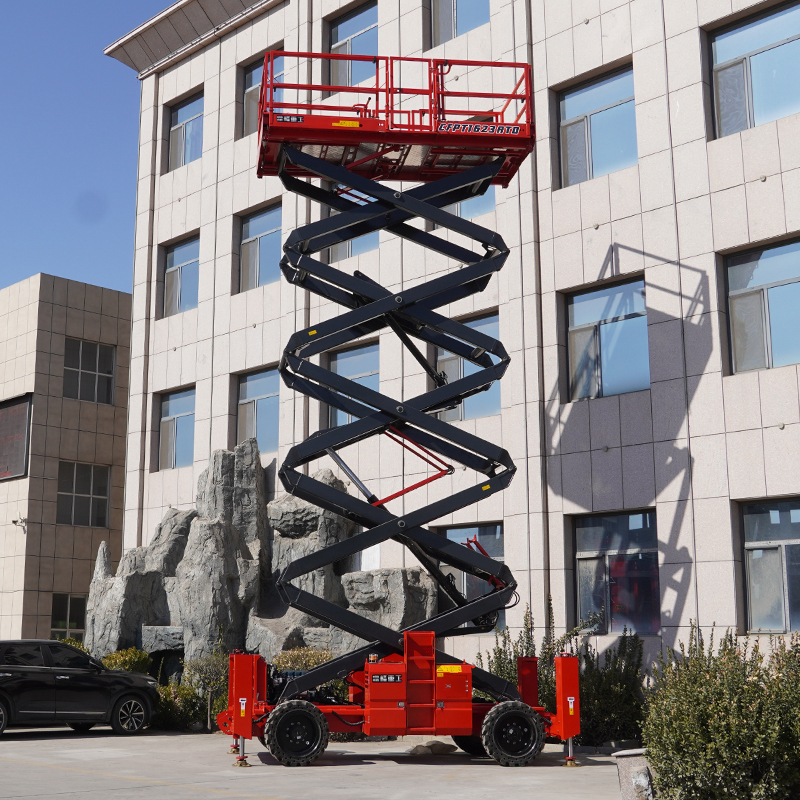

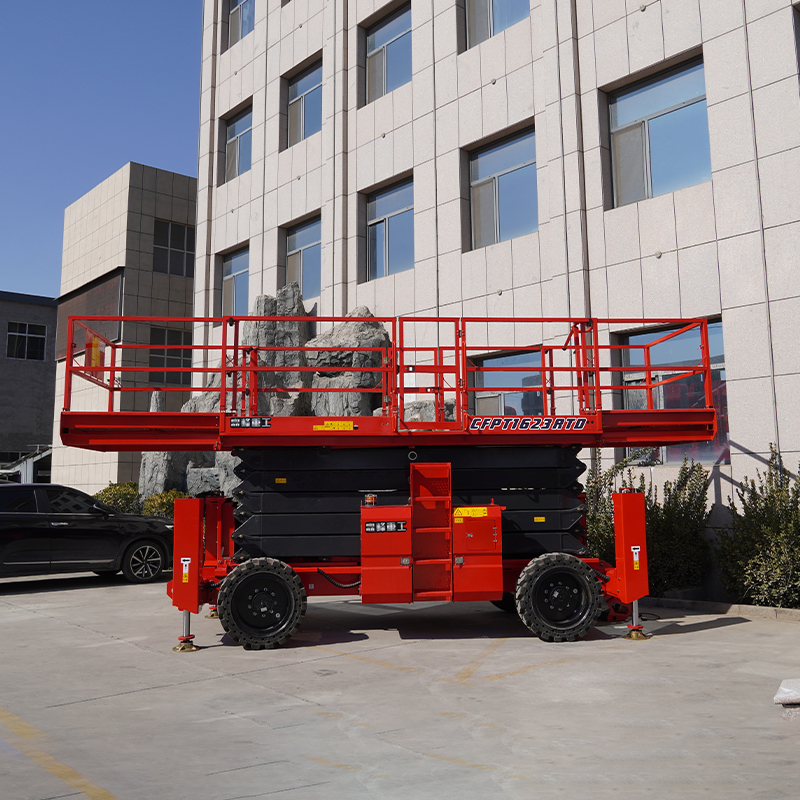

CFPT1623RTD – Rough Terrain Scissor Lifts With Outriggers

Product Description:

CFMG rough terrain scissor lifts are electric and diesel two models to choose from, it is equipped with extended working platform to improve the productivity, and the hydraulic one-click automatic leveling outriggers are stable and suitable for all kinds of complicated and rough roads.


  • Product Model: CFPT1623RTD
  • Max.working Height: 18m
  • Max.platform Height: 16m
  • Platform Size: 3940*1800mm
  • Platform Extension Size: 1450m(Front)/1150mm(Back)
  • Overall Dimensions: 4870*2280*2325mm
  • Load Capacity: 680kg
  • Extended Platform Loads: 230kg
  • Workers(Indoor/Outdoor): 4/4
  • Hydraulic Oil Tank: 120L
  • Weight: 8000kg
  • Product Parameters

    Product Configurations

    Product Tags

    CFPT1623RTD – Rough Terrain Scissor Lifts Advantages:

    • Equipped with load cell high safety performance.

    • Powerful diesel engine, 4-wheel drive, strong off-road performance.

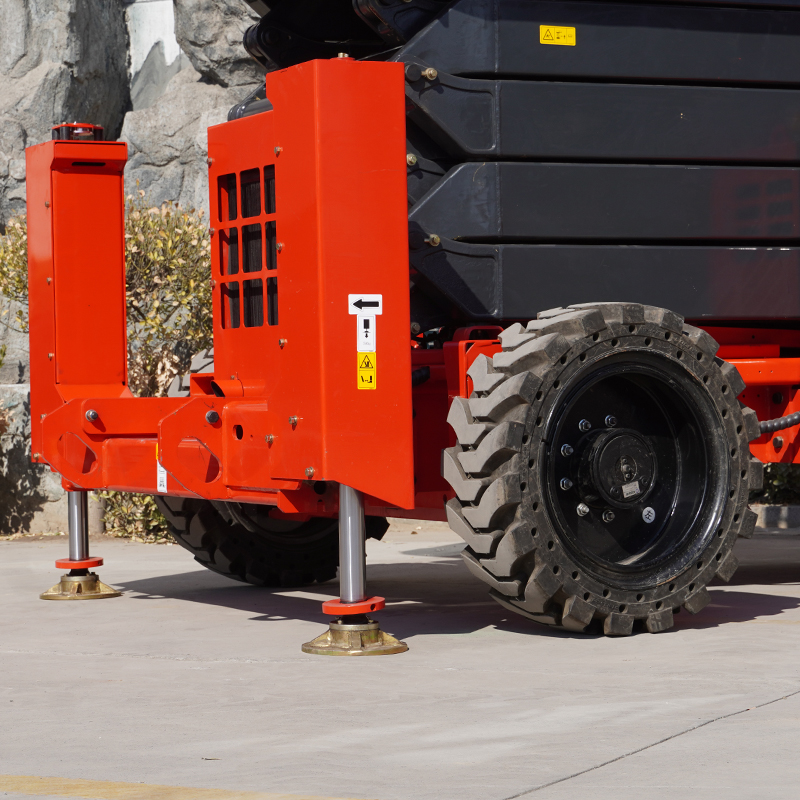

    • Automatic hydraulic one-key leveling legs strong stability adapt to a variety of complex and rugged road conditions.

    • Equipped with double extension platform large load capacity expanding the scope of operation and improving work efficiency.

    CFPT1623RTD – Rough Terrain Scissor Lifts Parameters:

    Product Model CFPT1623RTD
    Max.working Height 18m
    Max.platform Height 16m
    Overall Length(Including Ladder) 4870mm
    Overall Width 2280mm
    Overall Height(Guardrail Unfolded) 3065mm
    Overall Height(Guardrail Folded) 2325mm
    Platform Size(Length) 3940mm
    Platform Size(Width) 1800mm
    Platform Extension Size 1450m(Front)/1150mm(Back)
    Min.ground Clearance 220mm
    Load Capacity 680kg
    Extended Platform Loads 230kg
    Workers(Indoor/Outdoor) 4/4
    Min.turning Radius(Inner Wheel) 4500mm
    Min.turning Radius(Outer Wheel) 6800mm
    Machine Running Speed(Stowed) 6.1km/h
    Machine Running Speed(Rasied) 1.1km/h
    Rising/Descending Speed 55/55sec
    Gradeability 40%
    Max.working Slope 2°/3°
    Tyre Φ835*290mm
    Hydraulic Oil Tank 120L
    Rated Power 36/36.8kw
    Engine Model KubotaV2403
    Weight 8000kg

  • Previous:
  • Next:

  • Standard Configuration
    • Horn
    • Timer
    • Strobe Light
    • Emergency Descent
    • 4×4 Drive
    • Driving Confirmation
    • Folding Fence
    • Buzzer
    • Tilt Alarm
    • Platform Self-locking Door
    • Floating Bridge Chassis
    • Lanyard Connection Point
    • Extension Platform–Unidirectional/Bidirectional
    • Manual Brake Release
    • Automatic Brake System
    • Emergency Stop Button
    • Non-Marking Tire–12m/14m
    • Battery Charge(Fast/Slow)–16m
    • Weight Drop System
    • Oil Pipe Explosion-proof System
    • Fault Diagnosis System
    • Full Proportional Handle Control
    • Hydraulic Oil Cooling System–16m
    • Fixing And Lifting Points
    • Automatic Hydraulic Leveling Leg
    • Load Sensing System

    Optional Configuration
    • Lithium Battery–12m/14m/16m(Diesel)
    • 1.83m Work Fence
    • Top Limit Protection
    • Platform Work Lights
    • To Platform AC Power Cord
    • Foam Non-marking Tire–16m(Electric/Diesel)
