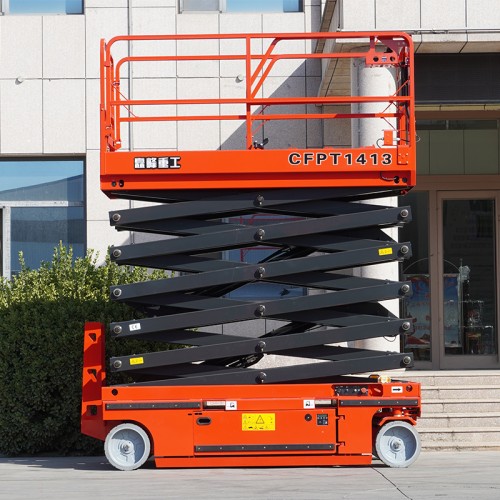

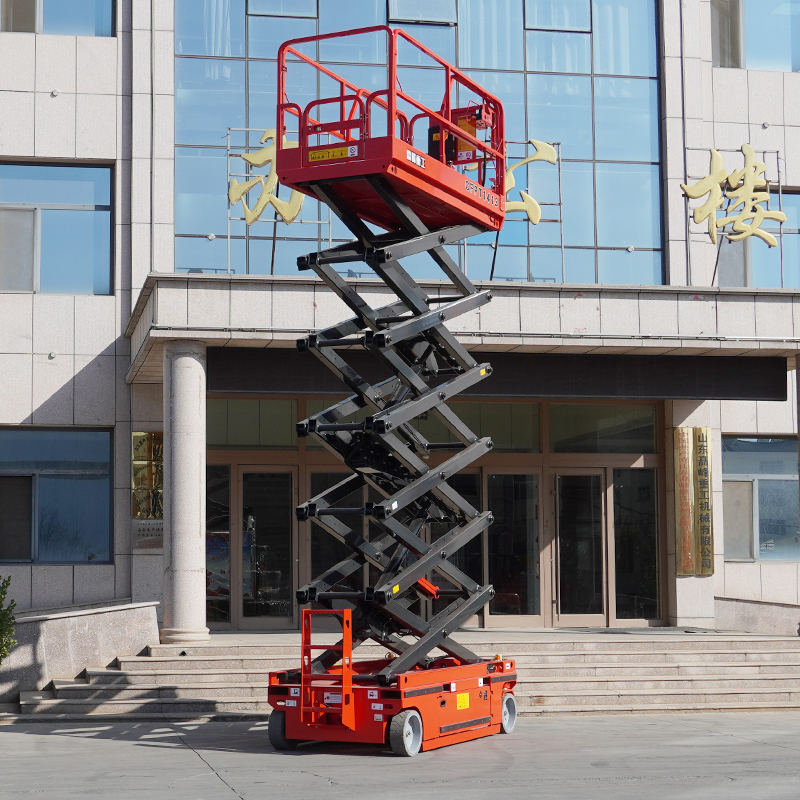

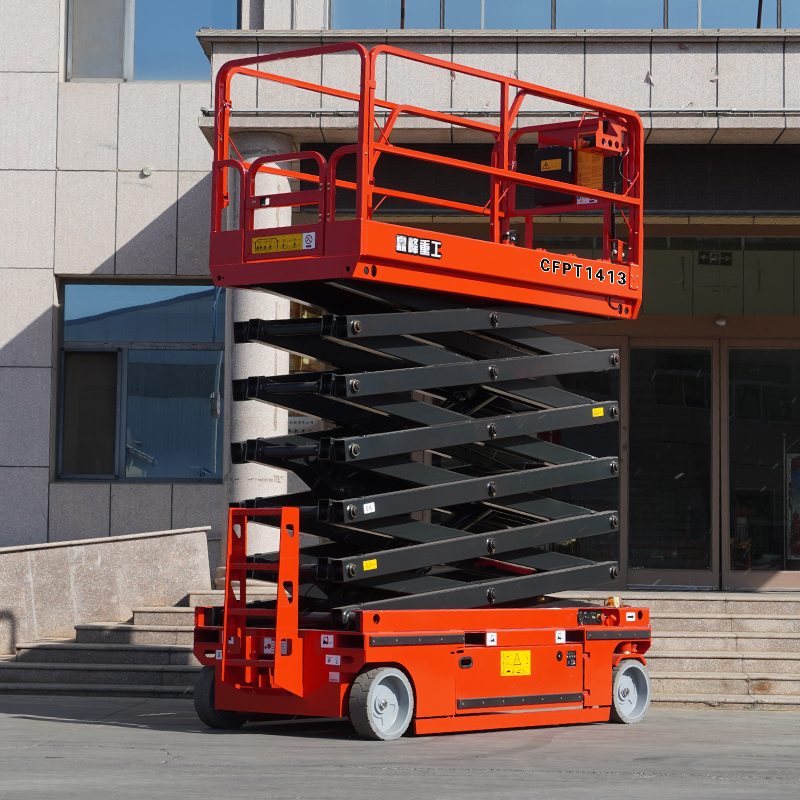

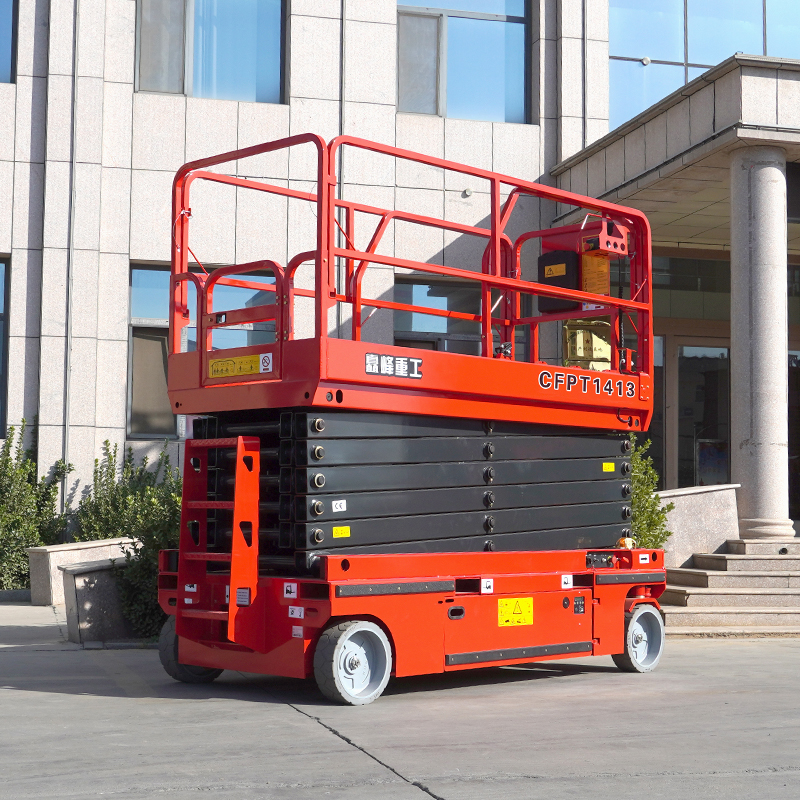

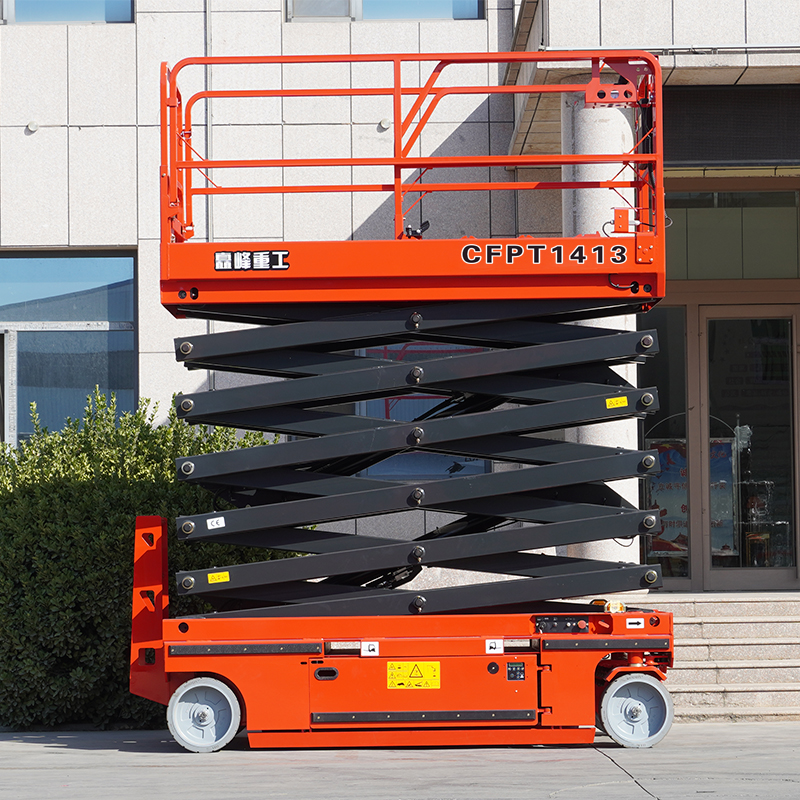

CFPT1413 – Self-propelled Scissor Lifts
CFPT1413 Self-propelled Scissor Lifts Advantages:
• Automatic display of fault code for easy maintenance.
• Automatic pothole protection system more safe and reliable.
• Electric model lightweight design equipped with high-capacity battery pack long endurance.
• Equipped with a unidirectional extension platform to expand the work scope and improve work efficiency.
CFPT1413 Self-propelled Scissor Lifts Parameters:
| Product Model | CFPT1413 |
| Max.working Height | 15.75m |
| Max.platform Height | 13.75m |
| Overall Length | 2839mm |
| Overall Width | 1310mm |
| Overall Height(Guardrail Unfolded) | 2660mm |
| Overall Height(Guardrail Folded) | 2100mm |
| Platform Size(Length) | 2640mm |
| Platform Size(Width) | 1110mm |
| Platform Extension Size | 900mm |
| Wheelbase | 2235mm |
| Min.ground Clearance(Stowed) | 100mm |
| Min.ground Clearance(Rasied) | 19mm |
| Load Capacity | 320kg |
| Extended Platform Loads | 113kg |
| Workers(Indoor/Outdoor) | 2/0 |
| Min.turning Radius(Inner Wheel) | 350mm |
| Min.turning Radius(Outer Wheel) | 2750mm |
| Lifting Motor | 24V/4.5kw |
| Machine Running Speed(Stowed) | 3km/h |
| Machine Running Speed(Rasied) | 0.8km/h |
| Rising/Descending Speed | 81/60sec |
| Gradeability | 25% |
| Max.working Slope | 1.5°/3° |
| Tyre | Φ381*127mm |
| Batteries | 4*6V/260Ah |
| Charger | 24V/36A |
| Weight | 3430kg |
Standard Configuration
• Proportional Control
• Self-Lock Gate On Platform
• Extension Platform
• Full Height Walking
• Non-Marking Tire
• 4×2 Drive
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Oil Pipe Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Hour Meter
• Safety Maintenance Support
• Standard Transport Forklift Hole
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
• Automatic Pit Protection
Optional Configuration
• Lithium Battery
• Overload Limit
• AC Power On the Platform
• Platform Work Light
• Chassis To Platform Air Duct
• Top Limit Protection
