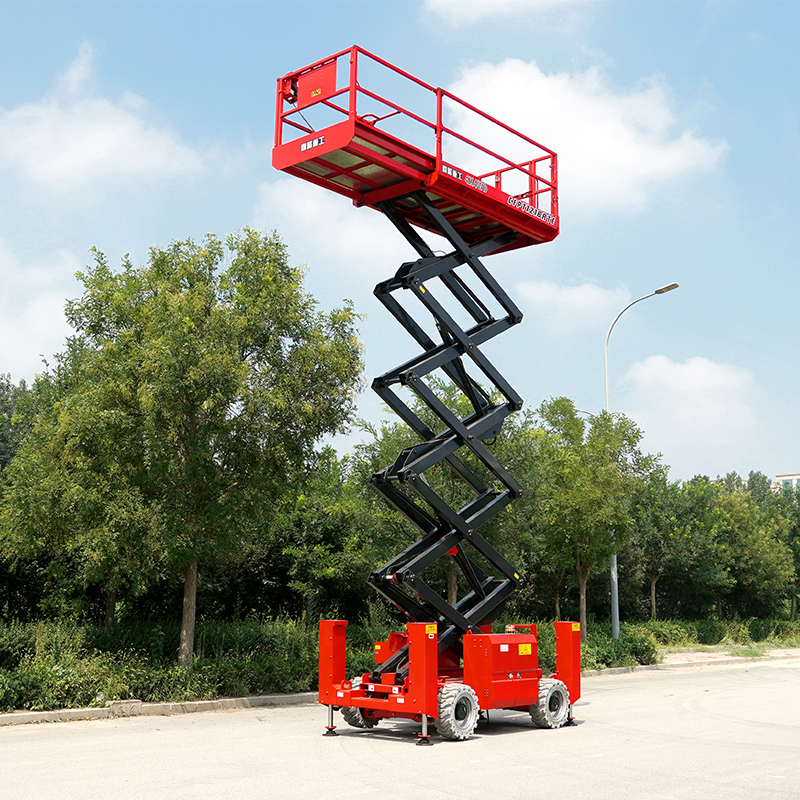

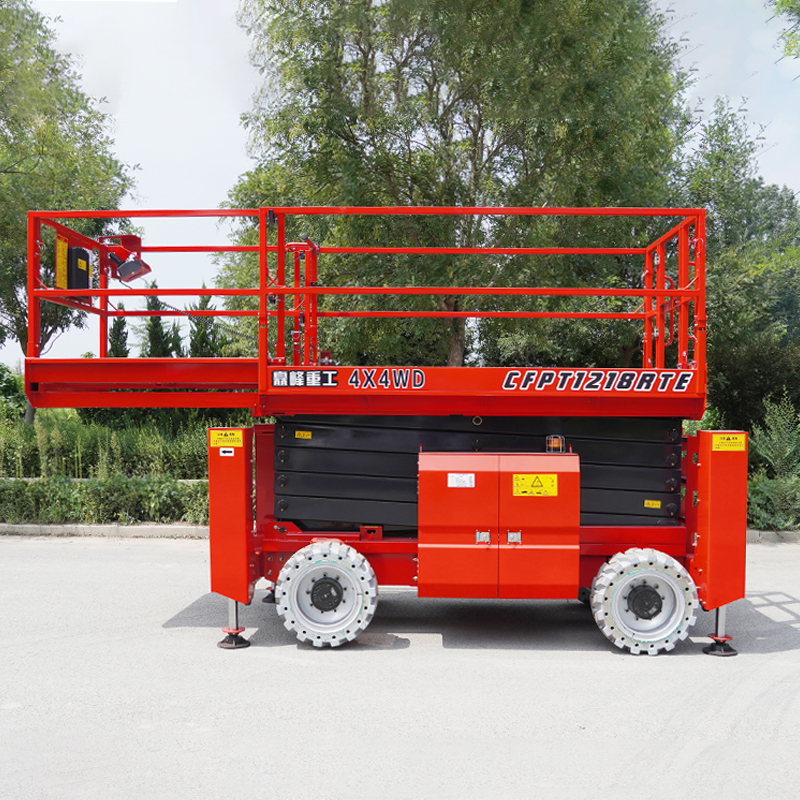

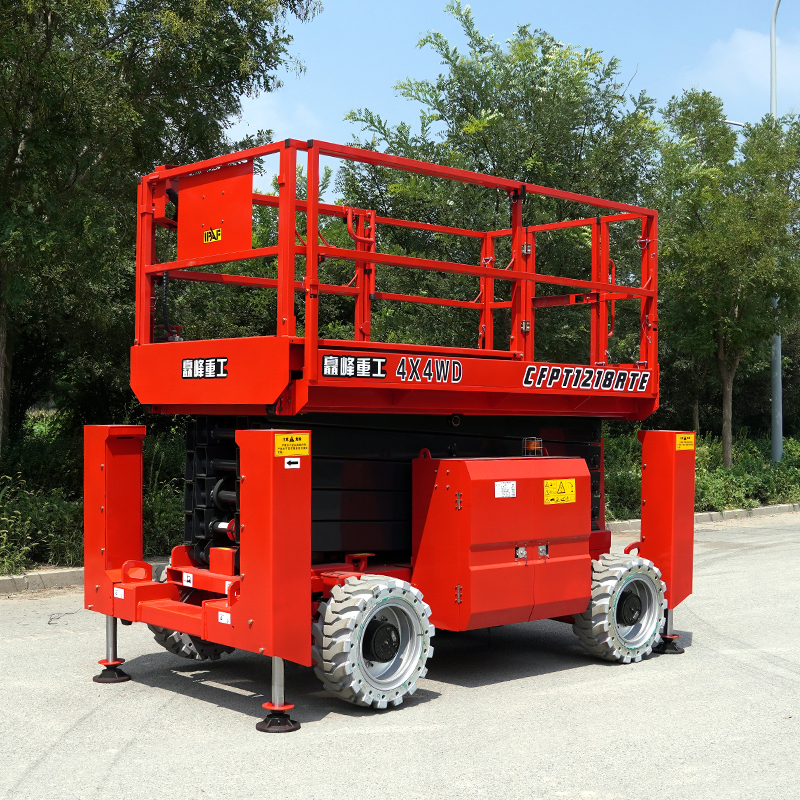

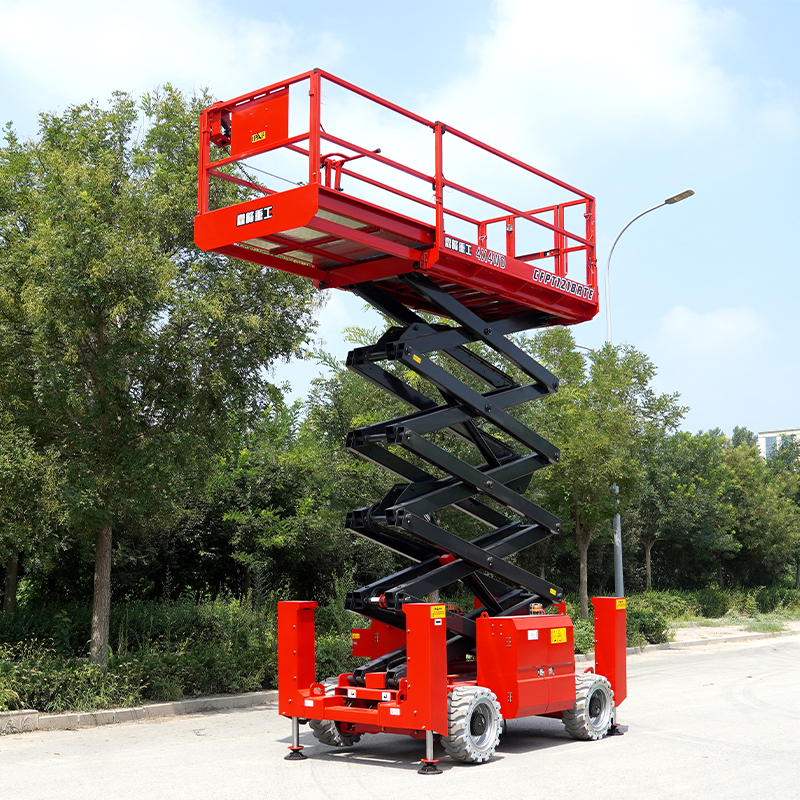

CFPT1218RTE – Rough Terrain Scissor Lifts With Outriggers
CFPT1218RTE – Rough Terrain Scissor Lifts Advantages:
• Equipped with load cell high safety performance.
• Equipped with a single extension platform large load expanding the scope of operation improve productivity.
• Automatic hydraulic one-touch leveling outriggers adapt to all kinds of harsh and complex working conditions.
• Large-capacity battery four-wheel drive and steering system has excellent off-road performance no noise and long range.
CFPT1218RTE – Rough Terrain Scissor Lifts Parameters:
| Product Model | CFPT1218RTE |
| Max.working Height | 14m |
| Max.platform Height | 12m |
| Overall Length(Including Ladder) | 3340mm |
| Overall Width | 1790mm |
| Overall Height(Guardrail Unfolded) | 2770mm |
| Overall Height(Guardrail Folded) | 2110mm |
| Platform Size(Length) | 2910mm |
| Platform Size(Width) | 1530mm |
| Platform Extension Size | 1445mm |
| Min.ground Clearance | 160mm |
| Load Capacity | 365kg |
| Extended Platform Loads | 140kg |
| Workers(Indoor/Outdoor) | 3/2 |
| Min.turning Radius(Inner Wheel) | 1730mm |
| Min.turning Radius(Outer Wheel) | 3800mm |
| Lifting Motor | 48V/5kw |
| Traveling Motor | 2*48V/1.2kw+2*48V/3.5kw |
| Machine Running Speed(Stowed) | 4.5km/h |
| Machine Running Speed(Rasied) | 0.8km/h |
| Rising/Descending Speed | 77/80sec |
| Gradeability | 35% |
| Max.working Slope | 2°/3° |
| Tyre | Φ660*180mm |
| Batteries | 48V/240Ah |
| Charger | 48V/35A |
| Weight | 4900kg |
Standard Configuration
• Horn
• Timer
• Strobe Light
• Emergency Descent
• 4×4 Drive
• Driving Confirmation
• Folding Fence
• Buzzer
• Tilt Alarm
• Platform Self-locking Door
• Floating Bridge Chassis
• Lanyard Connection Point
• Extension Platform–Unidirectional/Bidirectional
• Manual Brake Release
• Automatic Brake System
• Emergency Stop Button
• Non-Marking Tire–12m/14m
• Battery Charge(Fast/Slow)–16m
• Weight Drop System
• Oil Pipe Explosion-proof System
• Fault Diagnosis System
• Full Proportional Handle Control
• Hydraulic Oil Cooling System–16m
• Fixing And Lifting Points
• Automatic Hydraulic Leveling Leg
• Load Sensing System
Optional Configuration
• Lithium Battery–12m/14m/16m(Diesel)
• 1.83m Work Fence
• Top Limit Protection
• Platform Work Lights
• To Platform AC Power Cord
• Foam Non-marking Tire–16m(Electric/Diesel)
