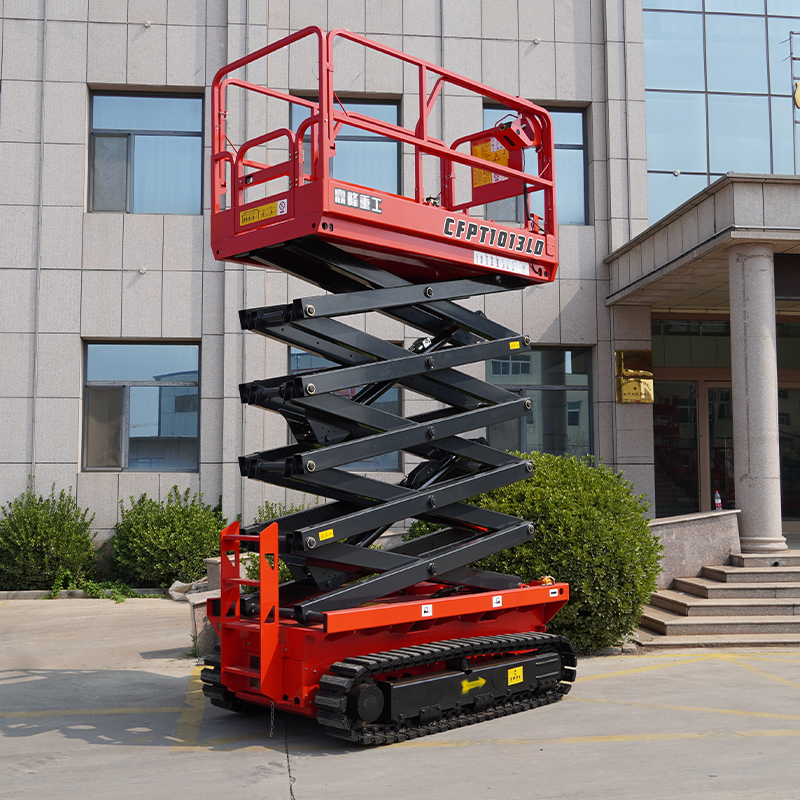

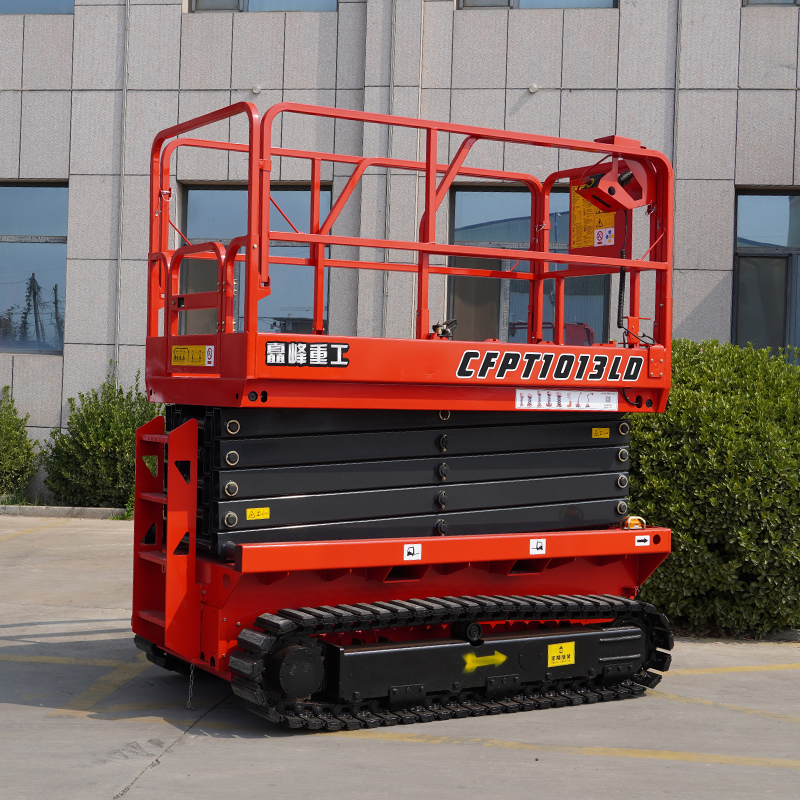

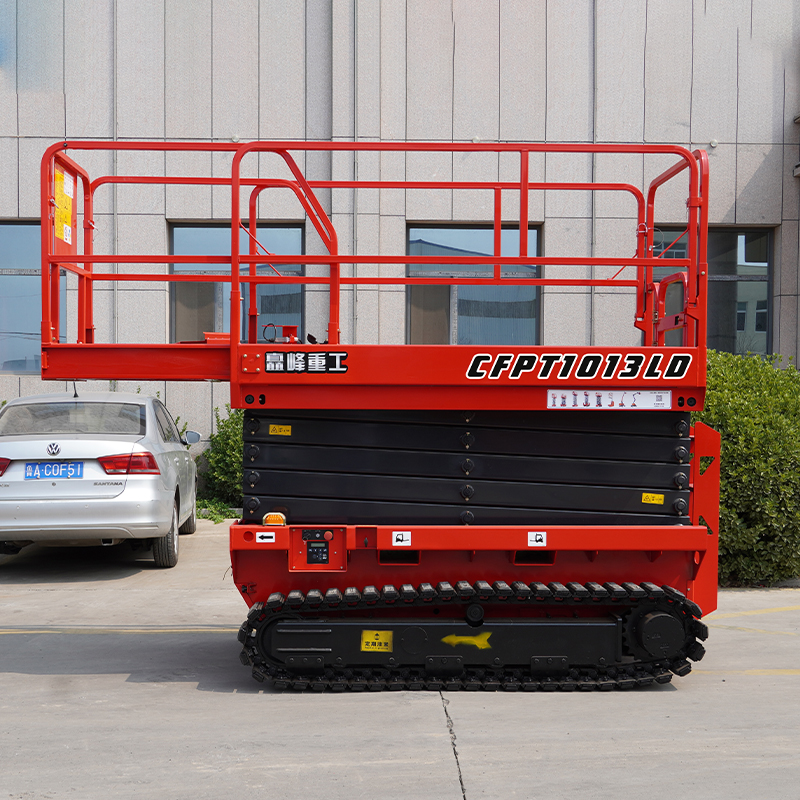

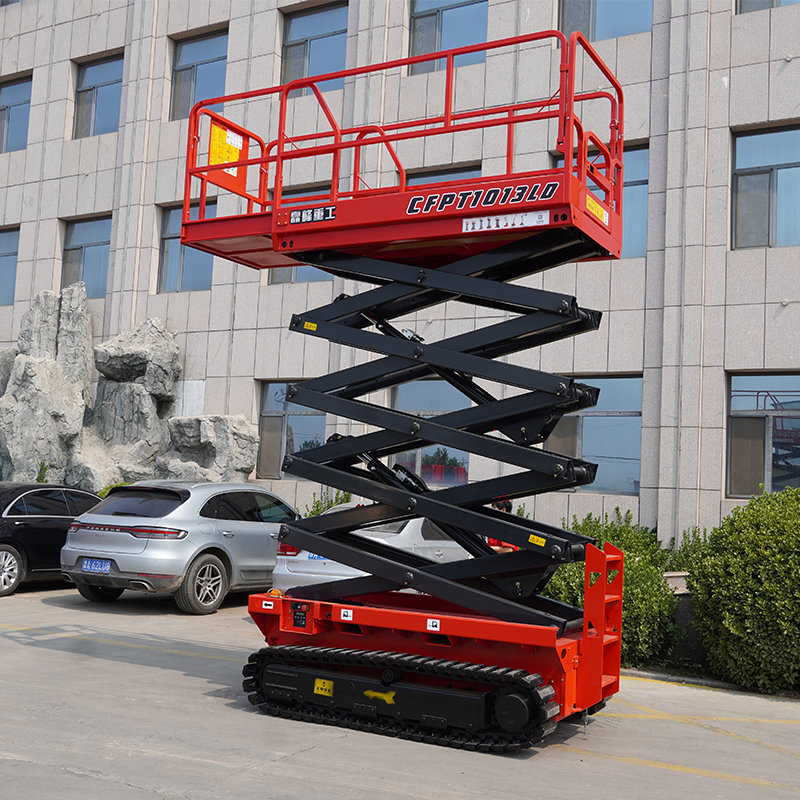

CFPT1013LD – Crawler Scissor Lifts

Product Description:

CFMG crawler scissor lift design allows flexible operation in complex terrain such as uneven terrain and areas that are difficult to access with traditional machinery. 360° steering, electronic drive system, easy to operate, high efficiency, environmental protection, energy saving.


  • Product Model: CFPT1013LD
  • Max.working Height: 12m
  • Max.platform Height: 9.75m
  • Overall Dimension: 2475*1340*1995mm
  • Platform Size: 2270*1120mm
  • Platform Extension Size: 900mm
  • Load Capacity: 320kg
  • Extended Platform Loads: 113kg
  • Workers(Indoor/Outdoor): 2/1
  • Batteries: 8*6V/240Ah
  • Weight: 3140kg(Rubber)/3170kg(Steel)
  • Product Parameters

    Product Configurations

    Product Tags

    CFPT1013LD Crawler Scissor Lifts Advantages:

    • Adopting high-power AC motor strong power high efficiency and strong endurance.

    • Rubber and steel tracks available, strong off-road ability suitable for all kinds of harsh construction environments.

    • Adopting single handle to control steering and traveling it can realize 360° steering and simpler operation.

    • Intelligent human-machine interaction system easy to get the status of the equipment so as to operate and manage.

    CFPT1013LD Crawler Scissor Lifts Parameters:

    Product Model CFPT1013LD
    Max.working Height 12m
    Max.platform Height 9.75m
    Overall Length(Including Ladder) 2475mm
    Overall Width 1390mm(Rubber)/1340mm(Steel)
    Overall Height(Guardrail Unfolded) 2530mm
    Overall Height(Guardrail Folded) 1995mm
    Platform Size(Length) 2270mm
    Platform Size(Width) 1120mm
    Platform Extension Size 900mm
    Min.ground Clearance 150mm
    Load Capacity 320kg
    Extended Platform Loads 113kg
    Workers(Indoor/Outdoor) 2/1
    Min.turning Radius 0m
    Lifting Motor 48V/4.5kw
    Traveling Motor 32V/4kw
    Machine Running Speed(Stowed) 2.4km/h
    Machine Running Speed(Rasied) 0
    Rising/Descending Speed 70/62sec
    Gradeability 30%
    Max.working Slope 2°/3°
    Batteries 8*6V/240Ah
    Charger 48V/40A
    Weight 3140kg(Rubber)/3170kg(Steel)

  • Previous:
  • Next:

  • Standard Configuration

    • Proportional Control
    • Self-lock Gate On Platform
    • Extension Platform
    • Crawler
    • Automatic Brake System
    • Emergency Descent System
    • Emergency Stop Button
    • Tubing Explosion-Proof System
    • Fault Diagnosis System
    • Tilt Protection System
    • Buzzer
    • Horn
    • Safety Maintenance Support
    • Standard Forklift Slot
    • Charging Protection System
    • Strobe Lamp
    • Foldable Guardrail

    Optional Configuration

    • Overoad Sensor with Alarm
    • AC Power On The Platform
    • Platform Work Light
    • Chassis-To-Platform Air Duct
    • Top Limit Protection
    • Rubber Crawler/Steel Crawler
