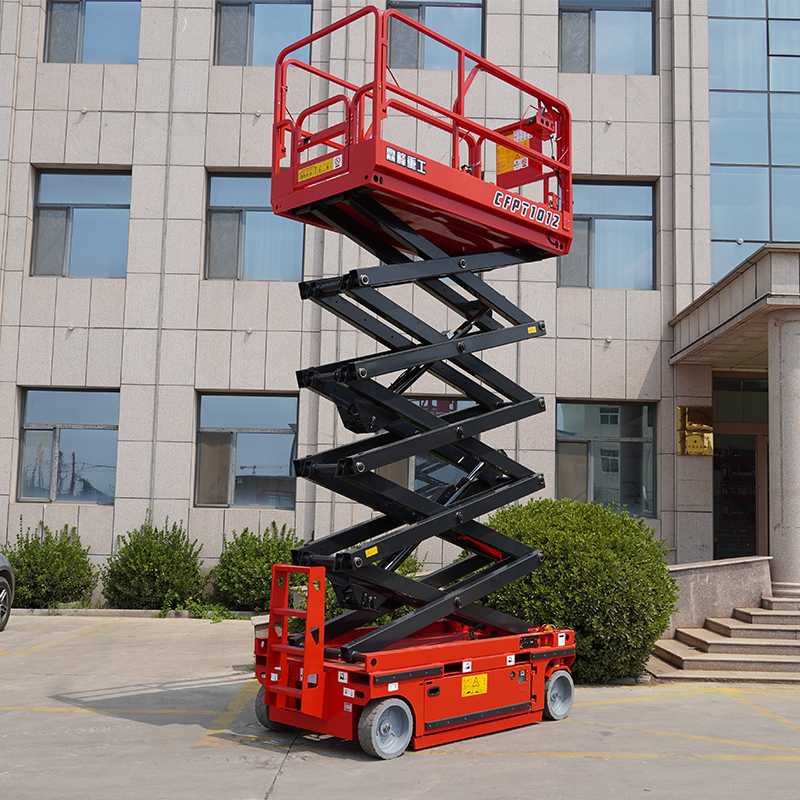

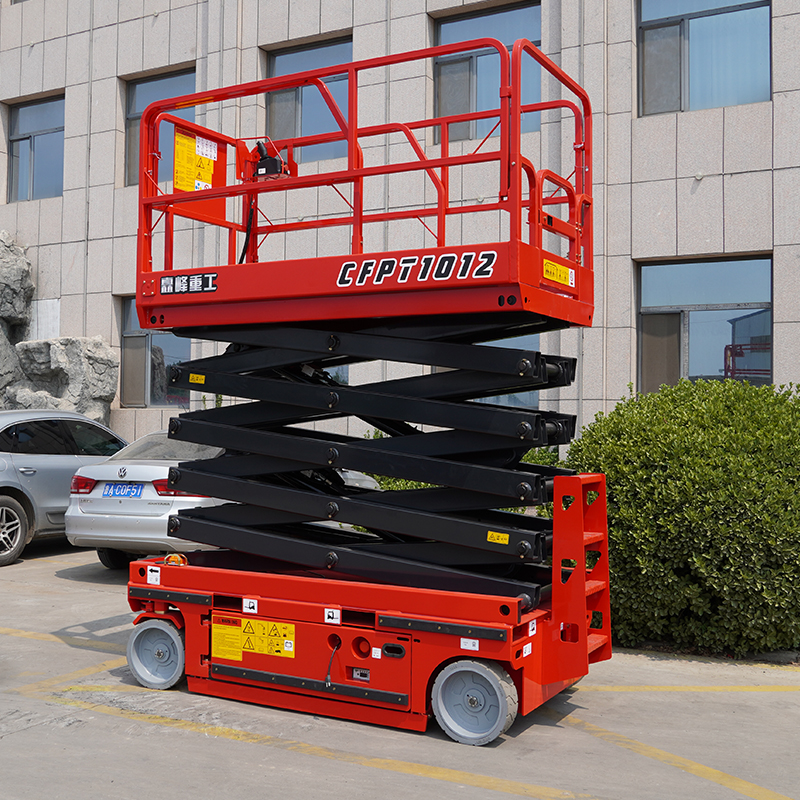

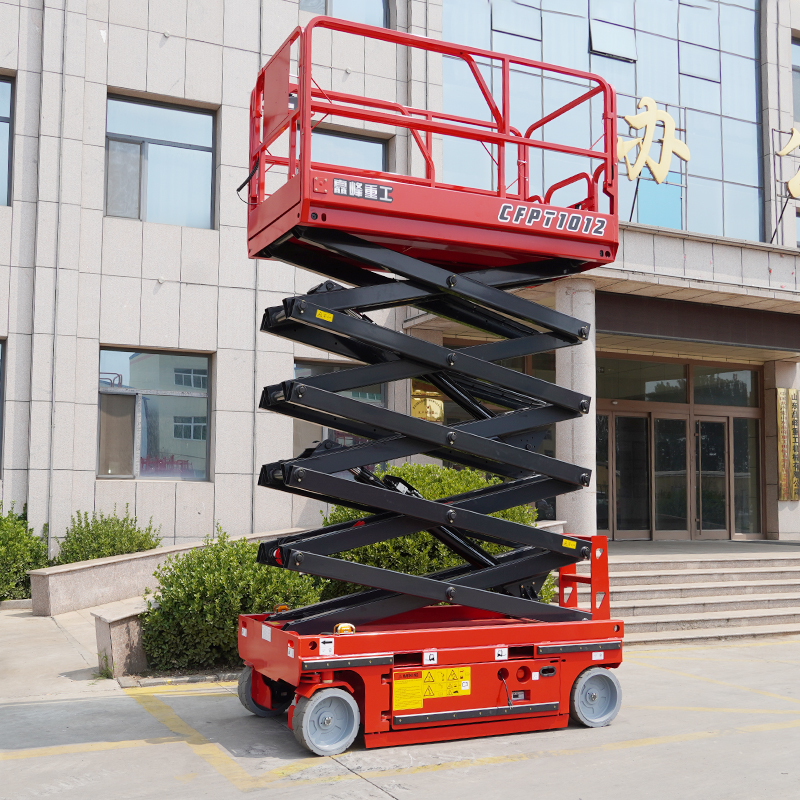

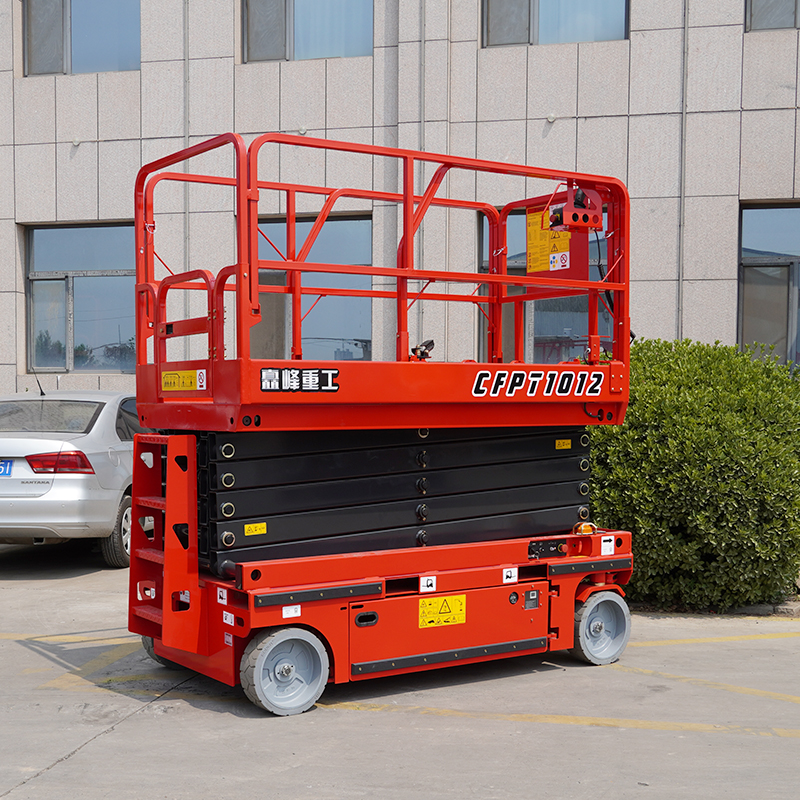

CFPT1012 – Self-propelled Scissor Lifts

Product Description:

CFMG self-propelled scissor lift is fully automatic without manual traction or external power supply. Flexible and convenient movement, drivable at full height and equipped with various safety protection devices, it is the ideal aerial work equipment for high efficiency and safe production.


  • Product Model: CFPT1012
  • Max.working Height: 12m
  • Max.platform Height: 10m
  • Platform Size: 2270*1110mm
  • Platform Extension Size: 900mm
  • Overall Dimensions: 2485*1210*1920mm
  • Load Capacity: 320kg
  • Extended Platform Loads: 113kg
  • Workers(Indoor/Outdoor): 2/1
  • Batteries: 4*6V/240Ah
  • Weight: 2932kg
  • Product Parameters

    Product Configurations

    Product Tags

    CFPT1012 Self-propelled Scissor Lifts Advantages:

    • Automatic display of fault code for easy maintenance.

    • Automatic pothole protection system more safe and reliable.

    • Unidirectional extension platform can quickly reach the operation point.

    • Electric model lightweight design equipped with high-capacity battery pack long endurance.

    CFPT1012 Self-propelled Scissor Lifts Parameters:

    Product Model CFPT1012
    Max.working Height 12m
    Max.platform Height 10m
    Overall Length 2485m
    Overall Width 1210mm
    Overall Height(Guardrail Unfolded) 2480mm
    Overall Height(Guardrail Folded) 1920mm
    Platform Size(Length) 2270mm
    Platform Size(Width) 1110mm
    Platform Extension Size 900mm
    Wheelbase 1865mm
    Min.ground Clearance(Stowed) 100mm
    Min.ground Clearance(Rasied) 19mm
    Load Capacity 320kg
    Extended Platform Loads 113kg
    Workers(Indoor/Outdoor) 2/1
    Min.turning Radius(Inner Wheel) 250mm
    Min.turning Radius(Outer Wheel) 2600mm
    Lifting Motor 24V/4.5kw
    Machine Running Speed(Stowed) 3km/h
    Machine Running Speed(Rasied) 0.8km/h
    Rising/Descending Speed 49/45sec
    Gradeability 25%
    Max.working Slope 1.5°/3°
    Tyre Φ381*127mm
    Batteries 4*6V/240Ah
    Charger 24V/36A
    Weight 2932kg

  • Previous:
  • Next:

  • Standard Configuration
    • Proportional Control
    • Self-Lock Gate On Platform
    • Extension Platform
    • Full Height Walking
    • Non-Marking Tire
    • 4×2 Drive
    • Automatic Brake System
    • Emergency Descent System
    • Emergency Stop Button
    • Oil Pipe Explosion-Proof System
    • Fault Diagnosis System
    • Tilt Protection System
    • Buzzer
    • Horn
    • Hour Meter
    • Safety Maintenance Support
    • Standard Transport Forklift Hole
    • Charging Protection System
    • Strobe Lamp
    • Foldable Guardrail
    • Automatic Pit Protection

    Optional Configuration
    • Lithium Battery
    • Overload Limit
    • AC Power On the Platform
    • Platform Work Light
    • Chassis To Platform Air Duct
    • Top Limit Protection
