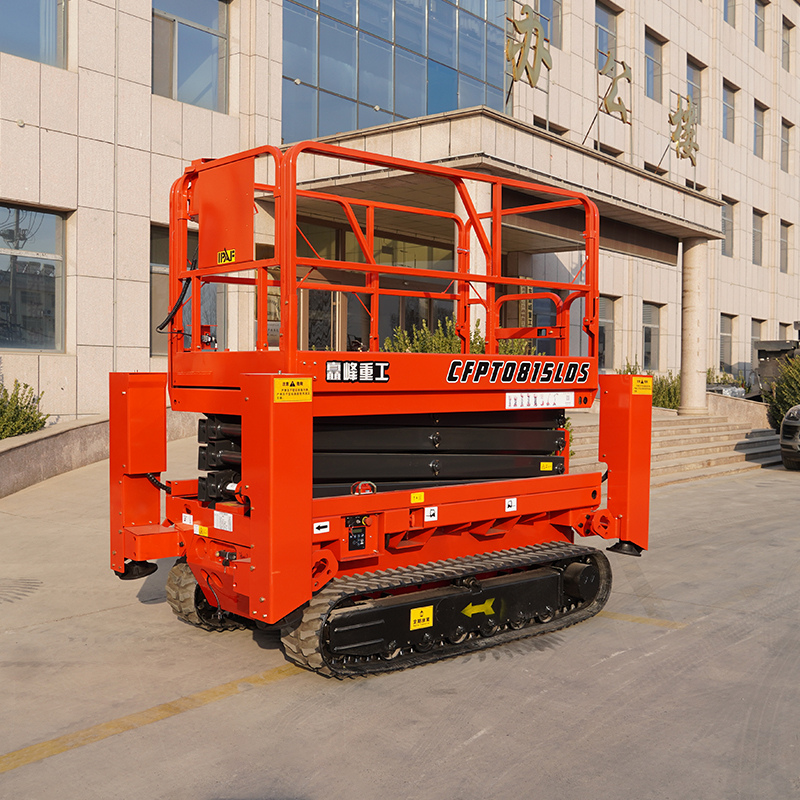

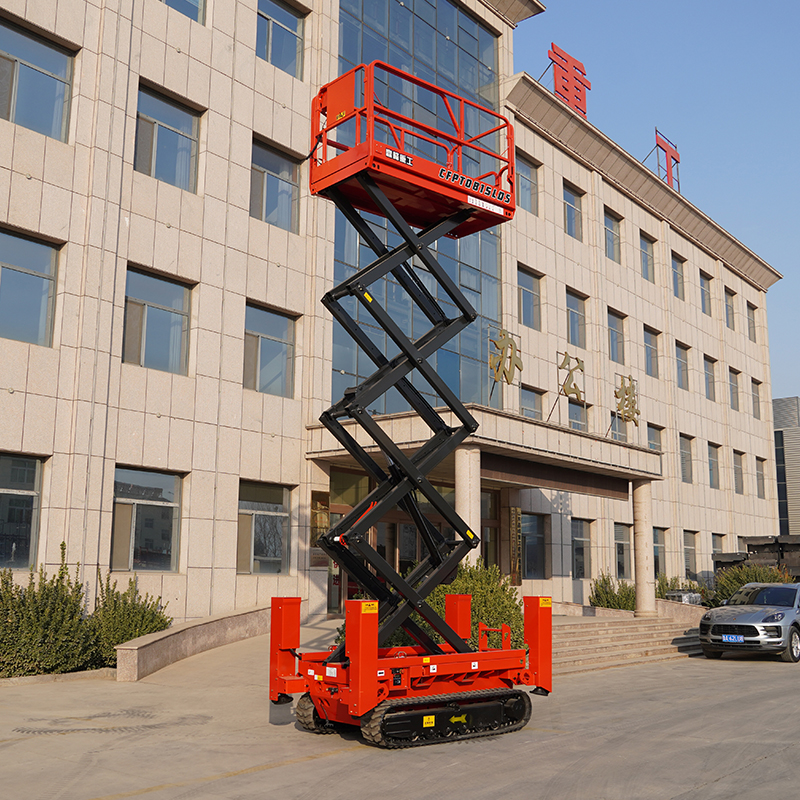

CFPT0815LDS – Crawler Scissor Lifts With Outriggers

Product Description:

CFMG crawler scissor lift design allows flexible operation in complex terrain such as uneven terrain and areas that are difficult to access with traditional machinery. 360° steering, electronic drive system, easy to operate, high efficiency, environmental protection, energy saving.


  • Product Model: CFPT0815LDS
  • Max.working Height: 10m
  • Max.platform Height: 8m
  • Overall Dimension: 2767*1500*1865mm
  • Platform Size: 2270*1110mm
  • Platform Extension Size: 900mm
  • Load Capacity: 450kg
  • Extended Platform Loads: 113kg
  • Workers(Indoor/Outdoor): 2/2
  • Batteries: 8*6V/240Ah
  • Weight: 3253kg
  • Product Parameters

    Product Configurations

    Product Tags

    CFPT0815LDS Crawler Scissor Lifts Advantages:

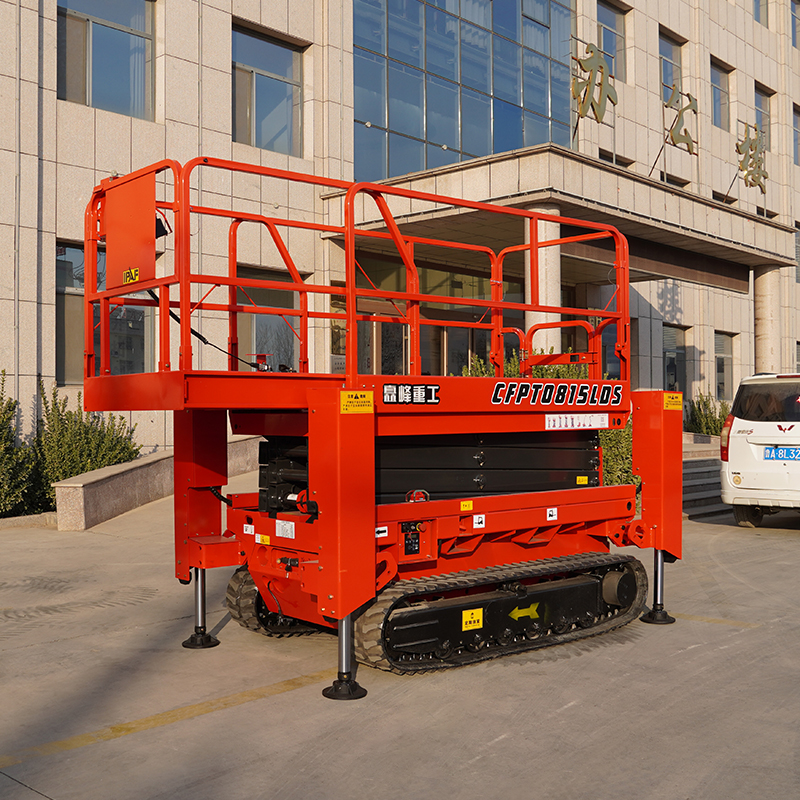

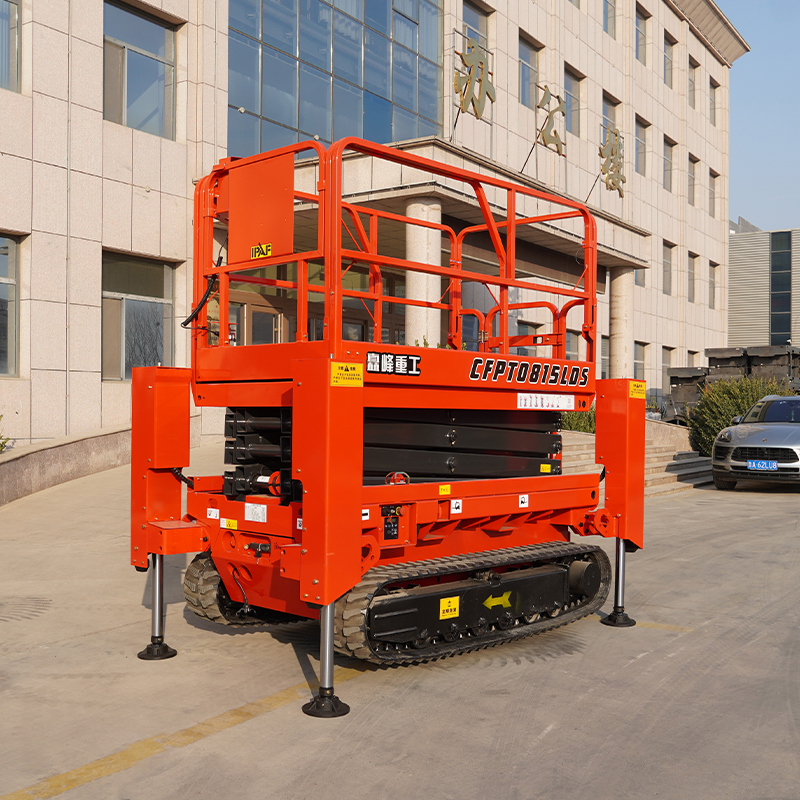

    • One-key Leveling Hydraulic Outriggers safe and reliable.

    • Adopting high-power AC motor drive high efficiency and strong range.

    • A variety of safety protection devices to ensure high safety when walking.

    • Steel crawler chassis with in-situ steering suitable for all kinds of complex road surfaces.

    CFPT0815LDS Crawler Scissor Lifts Parameters:

    Product Model CFPT0815LDS
    Max.working Height 10m
    Max.platform Height 8m
    Overall Length(Including Ladder) 2767mm
    Overall Width 1500mm
    Overall Height(Guardrail Unfolded) 2460mm
    Overall Height(Guardrail Folded) 1865mm
    Platform Size(Length) 2270mm
    Platform Size(Width) 1110mm
    Platform Extension Size 900m
    Min.ground Clearance 150mm
    Load Capacity 450kg
    Extended Platform Loads 113kg
    Workers(Indoor/Outdoor) 2/2
    Min.turning Radius 0m
    Lifting Motor 48V/4.5kw
    Traveling Motor 2*48V/5.8kw
    Machine Running Speed(Stowed) 2km/h
    Machine Running Speed(Rasied) 0
    Rising/Descending Speed 40/35sec
    Gradeability 30%
    Max.working Slope 2°/3°
    Batteries 8*6V/240Ah
    Charger 48V/40A
    Weight 3253kg

  • Previous:
  • Next:

  • Standard Configuration

    • Proportional Control
    • Self-lock Gate On Platform
    • Extension Platform
    • Crawler
    • Automatic Brake System
    • Emergency Descent System
    • Emergency Stop Button
    • Tubing Explosion-Proof System
    • Fault Diagnosis System
    • Tilt Protection System
    • Buzzer
    • Horn
    • Safety Maintenance Support
    • Standard Forklift Slot
    • Charging Protection System
    • Strobe Lamp
    • Foldable Guardrail

    Optional Configuration

    • Overload Sensor With Alarm
    • AC Power On The Platform
    • Platform Work Light
    • Chassis-To-Platform Air Duct
    • Top Limit Protection
    • Steel Crawler
