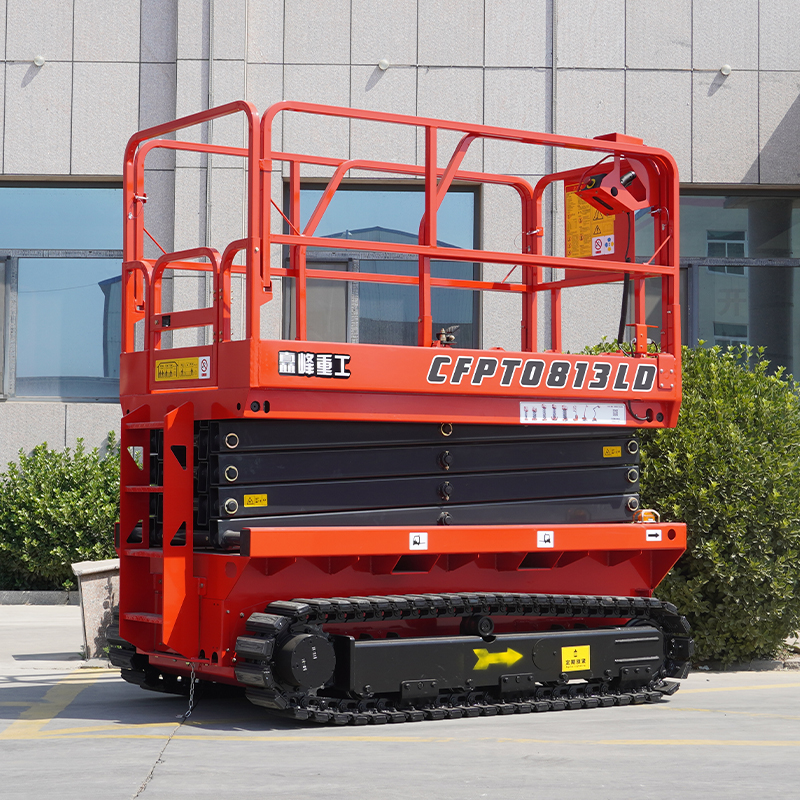

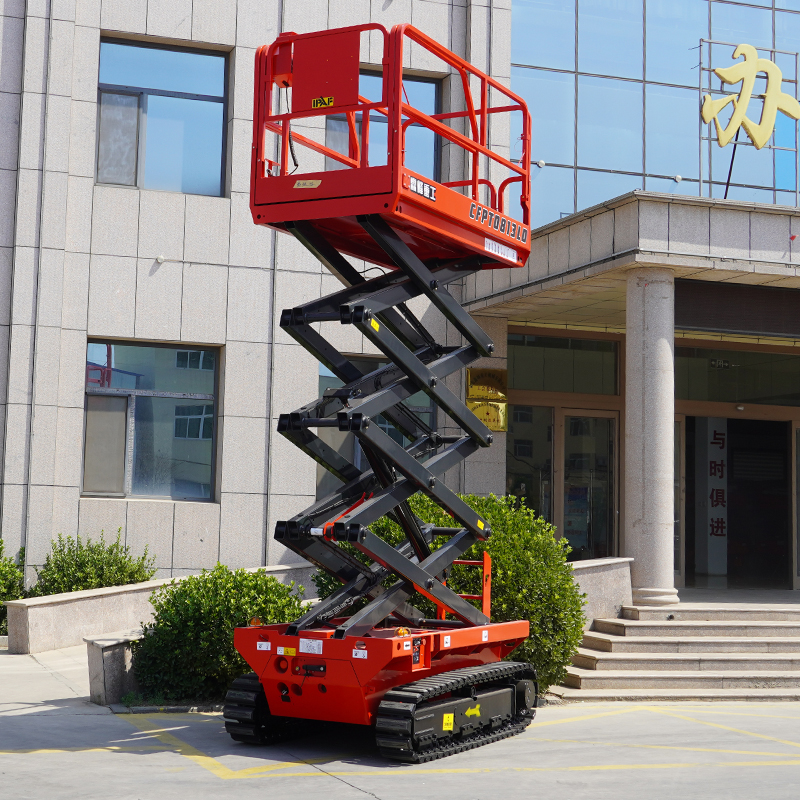

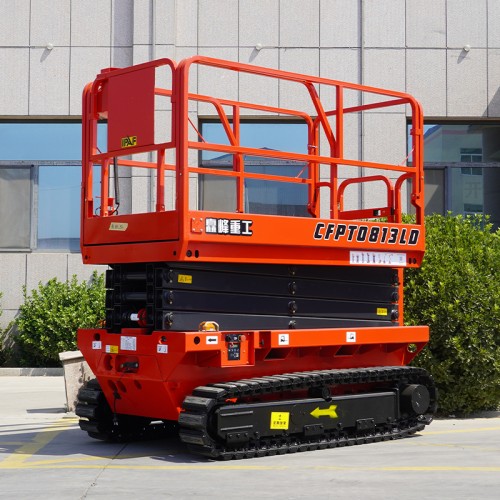

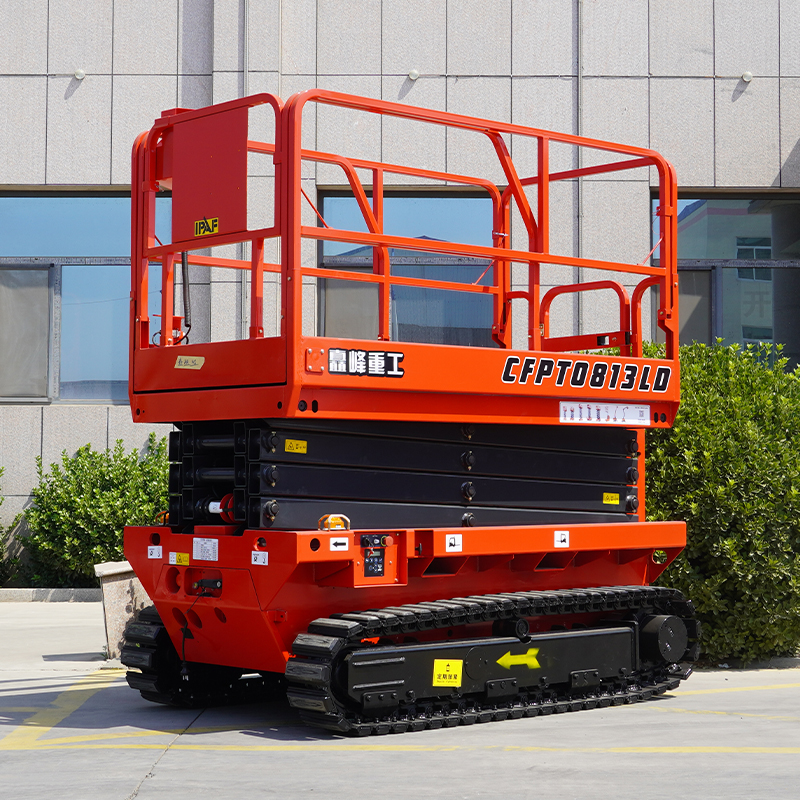

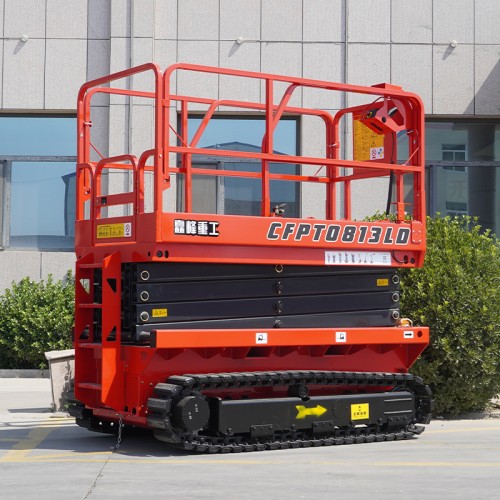

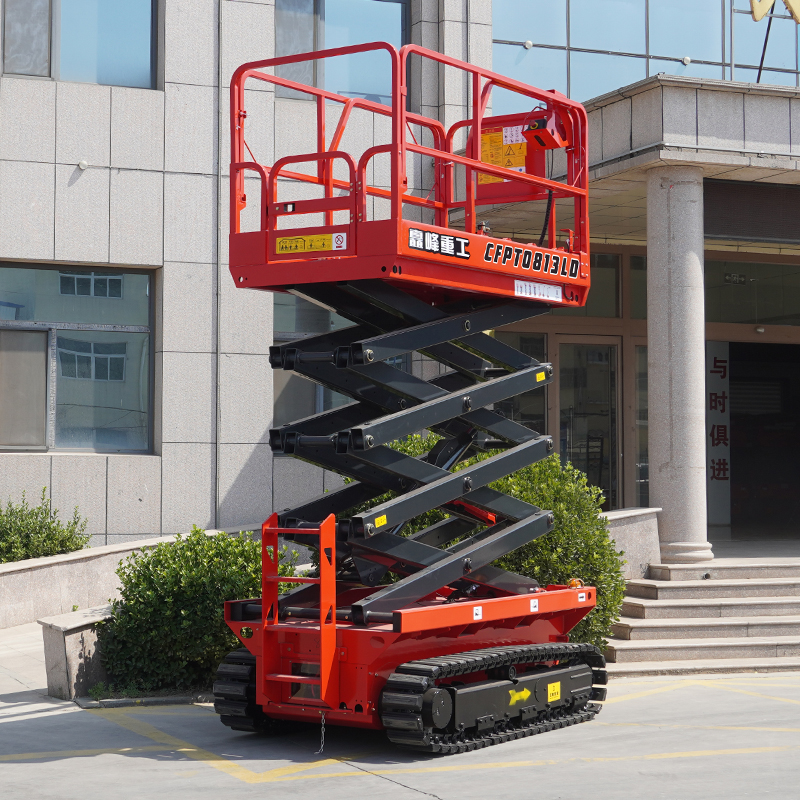

CFPT0813LD – Crawler Scissor Lifts
CFPT0813LD Crawler Scissor Lifts Advantages:
• Adopting high-power AC motor strong power high efficiency and strong endurance.
• Rubber and steel tracks available, strong off-road ability suitable for all kinds of harsh construction environments.
• Adopting single handle to control steering and traveling it can realize 360° steering and simpler operation.
• Intelligent human-machine interaction system easy to get the status of the equipment so as to operate and manage.
CFPT0813LD Crawler Scissor Lifts Parameters:
| Product Model | CFPT0813LD |
| Max.working Height | 10m |
| Max.platform Height | 8m |
| Overall Length(Including Ladder) | 2475mm |
| Overall Width | 1390mm(Rubber)/1340mm(Steel) |
| Overall Height(Guardrail Unfolded) | 2460mm |
| Overall Height(Guardrail Folded) | 1865mm |
| Platform Size(Length) | 2270mm |
| Platform Size(Width) | 1110mm |
| Platform Extension Size | 900mm |
| Min.ground Clearance | 150mm |
| Load Capacity | 450kg |
| Extended Platform Loads | 113kg |
| Workers(Indoor/Outdoor) | 2/1 |
| Min.turning Radius | 0m |
| Lifting Motor | 48V/4.5kw |
| Traveling Motor | 32V/4kw |
| Machine Running Speed(Stowed) | 2km/h |
| Machine Running Speed(Rasied) | 0 |
| Rising/Descending Speed | 40/35sec |
| Gradeability | 30% |
| Max.working Slope | 2°/3° |
| Batteries | 8*6V/240Ah |
| Charger | 48V/40A |
| Weight | 2900kg(Rubber)/2930kg(Steel) |
Standard Configuration
• Proportional Control
• Self-lock Gate On Platform
• Extension Platform
• Crawler
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Safety Maintenance Support
• Standard Forklift Slot
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
Optional Configuration
• Overoad Sensor with Alarm
• AC Power On The Platform
• Platform Work Light
• Chassis-To-Platform Air Duct
• Top Limit Protection
• Rubber Crawler/Steel Crawler
