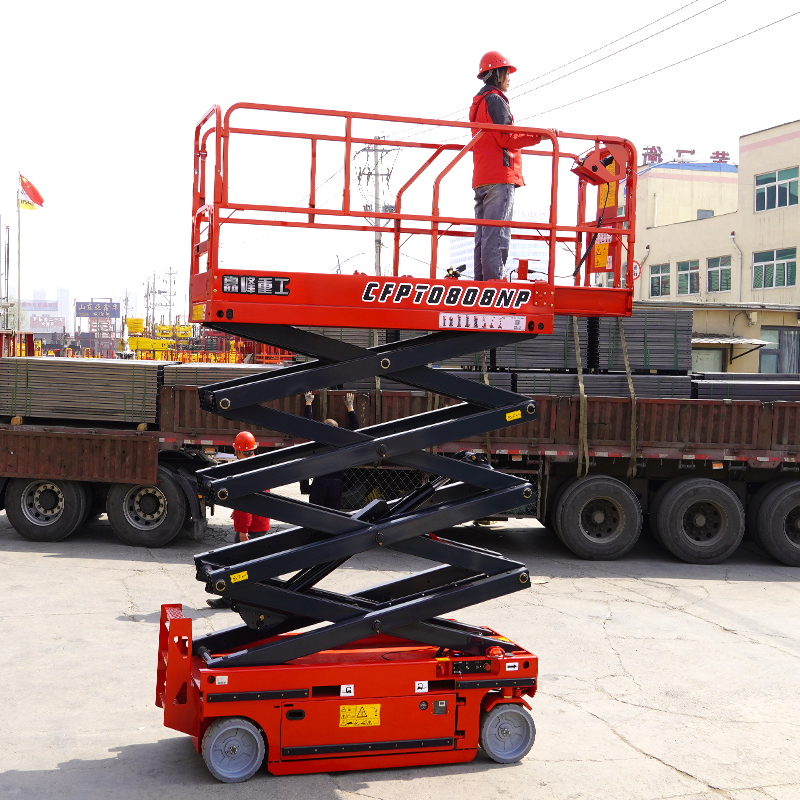

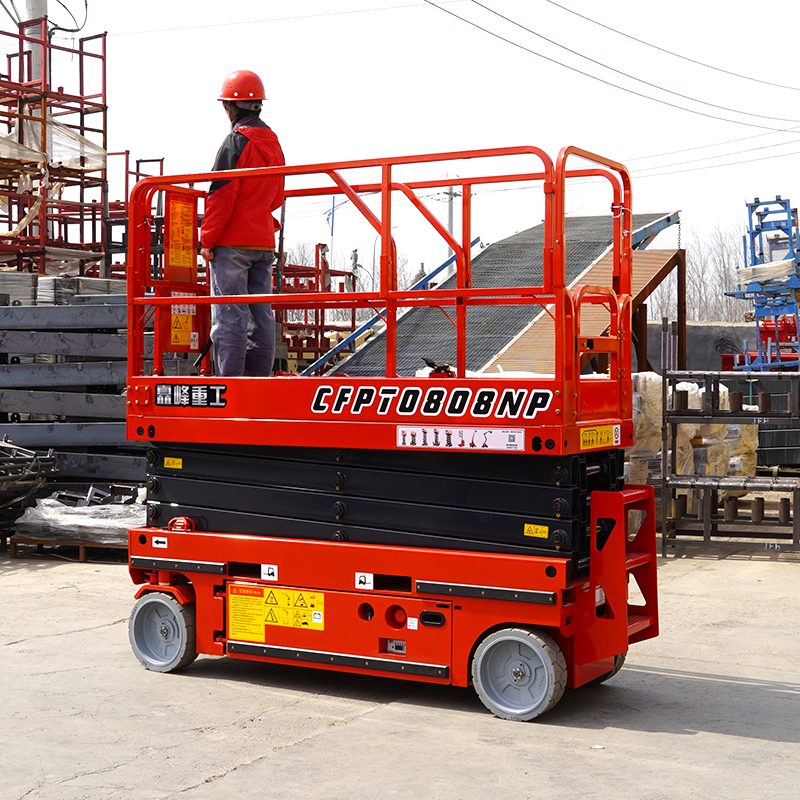

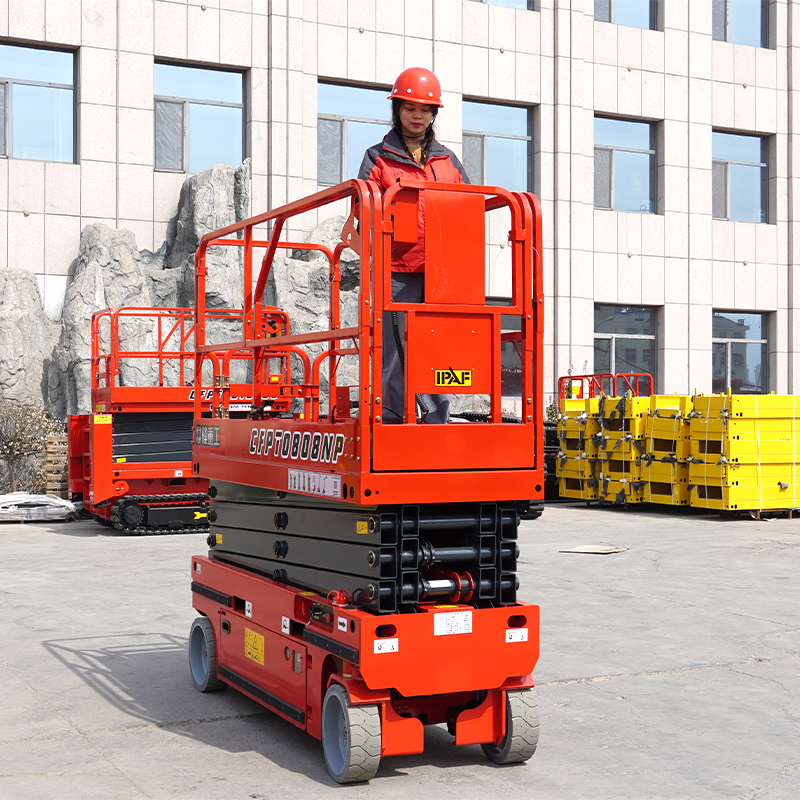

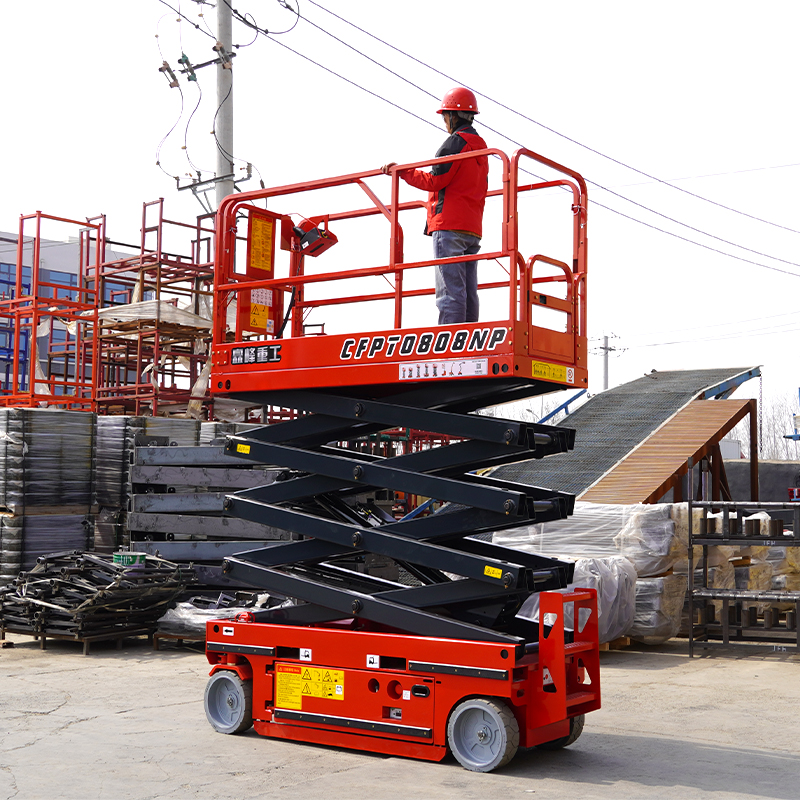

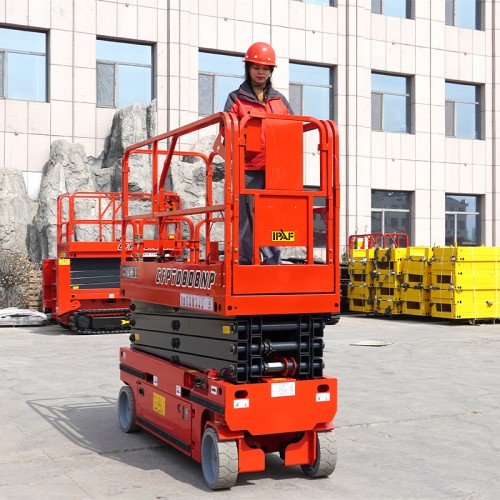

CFPT0808NP – Self-propelled Scissor Lifts

Product Description:

CFMG self-propelled scissor lift is fully automatic without manual traction or external power supply. Flexible and convenient movement, drivable at full height and equipped with various safety protection devices, it is the ideal aerial work equipment for high efficiency and safe production.


  • Product Model: CFPT0808NP
  • Max.working Height: 10m
  • Max.platform Height: 8m
  • Platform Size: 2270*810mm
  • Platform Extension Size: 900mm
  • Overall Dimensions: 2485*820*2000mm
  • Load Capacity: 230kg
  • Extended Platform Loads: 113kg
  • Workers(Indoor/Outdoor): 2/0
  • Batteries: 4*6V/200Ah
  • Weight: 1970kg
  • Product Parameters

    Product Configurations

    Product Tags

    CFPT0808NP Self-propelled Scissor Lifts Advantages:

    • Small turning radius and flexible operation.

    • Battery-powered hydraulically driven powerful low noise suitable for indoor work.

    • Equipped with single extension platform to expand the work scope and improve work efficiency.

    • Small size light weight can enter and exit the passenger elevator at will special for the mezzanine floor of the building.

    CFPT0808NP Self-propelled Scissor Lifts Parameters:

    Product Model CFPT0808NP
    Max.working Height 10m
    Max.platform Height 8m
    Overall Length 2485mm
    Overall Width 820mm
    Overall Height(Guardrail Unfolded) 2357mm
    Overall Height(Guardrail Folded) 2000mm
    Platform Size(Length) 2270mm
    Platform Size(Width) 810mm
    Platform Extension Size 900mm
    Wheelbase 1865mm
    Min.ground Clearance(Stowed) 100mm
    Min.ground Clearance(Rasied) 19mm
    Load Capacity 230kg
    Extended Platform Loads 113kg
    Workers(Indoor/Outdoor) 2/0
    Min.turning Radius(Inner Wheel) 460mm
    Min.turning Radius(Outer Wheel) 2330kg
    Lifting Motor 24V/4.5kw
    Machine Running Speed(Stowed) 3km/h
    Machine Running Speed(Rasied) 0.8km/h
    Rising/Descending Speed 40/30sec
    Gradeability 25%
    Max.working Slope 1.5°/3°
    Tyre Φ381*127mm
    Batteries 4*6V/200Ah
    Charger 24V/36A
    Weight 1970kg

  • Previous:
  • Next:

  • Standard Configuration
    • Proportional Control
    • Self-Lock Gate On Platform
    • Extension Platform
    • Full Height Walking
    • Non-Marking Tire
    • 4×2 Drive
    • Automatic Brake System
    • Emergency Descent System
    • Emergency Stop Button
    • Oil Pipe Explosion-Proof System
    • Fault Diagnosis System
    • Tilt Protection System
    • Buzzer
    • Horn
    • Hour Meter
    • Safety Maintenance Support
    • Standard Transport Forklift Hole
    • Charging Protection System
    • Strobe Lamp
    • Foldable Guardrail
    • Automatic Pit Protection

    Optional Configuration
    • Lithium Battery
    • Overload Limit
    • AC Power On the Platform
    • Platform Work Light
    • Chassis To Platform Air Duct
    • Top Limit Protection
