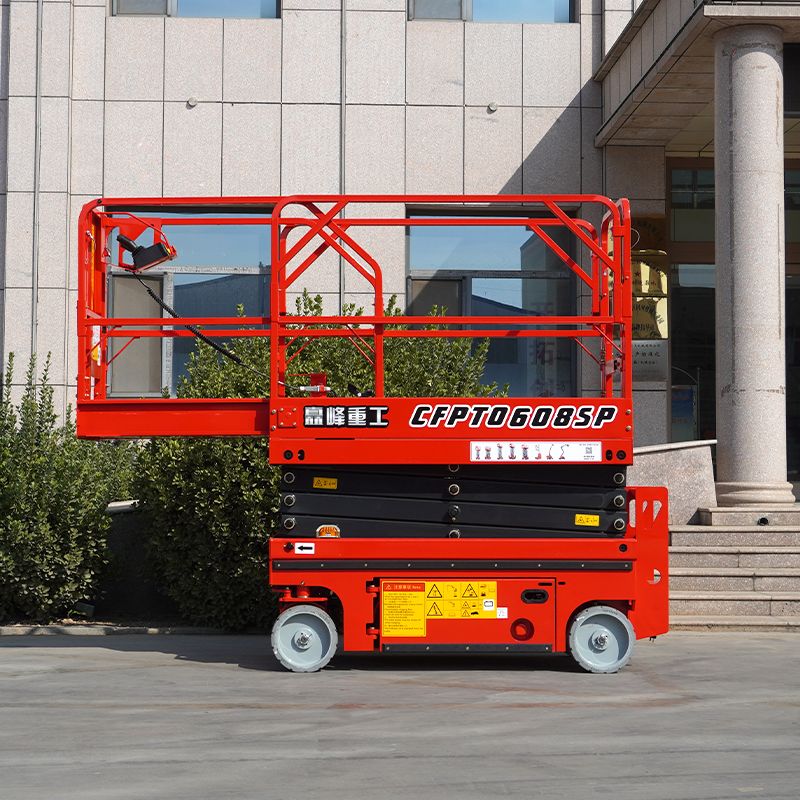

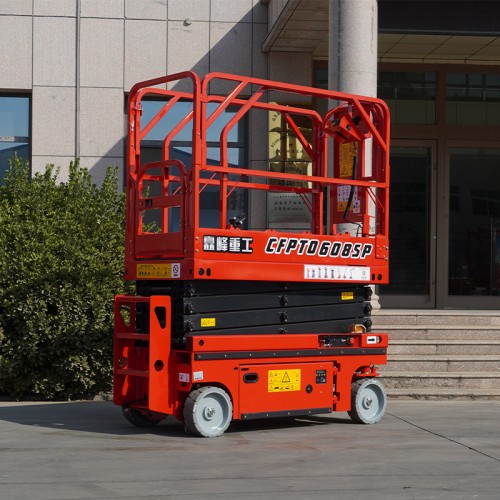

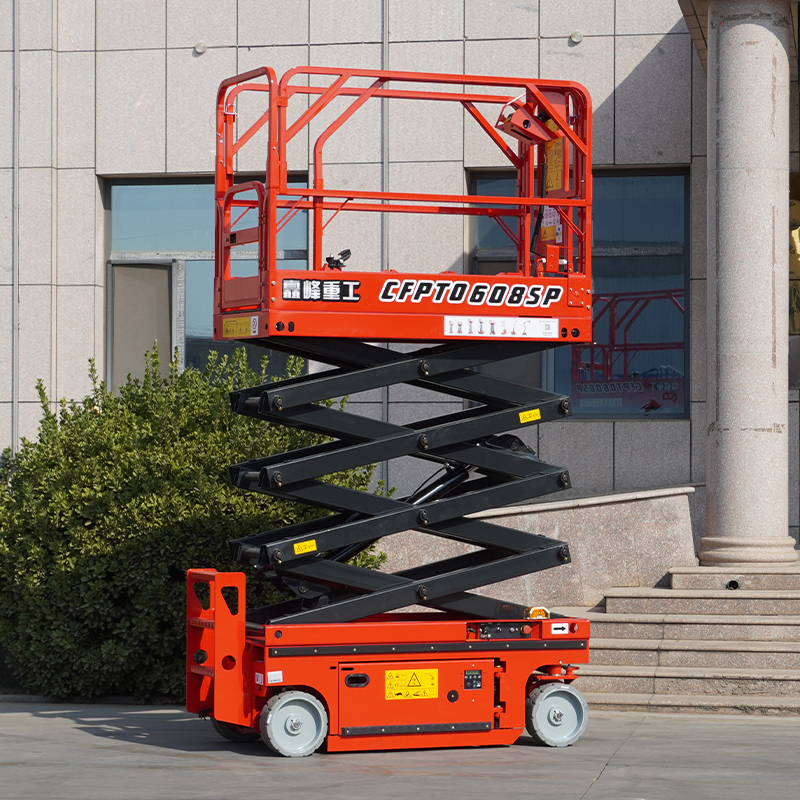

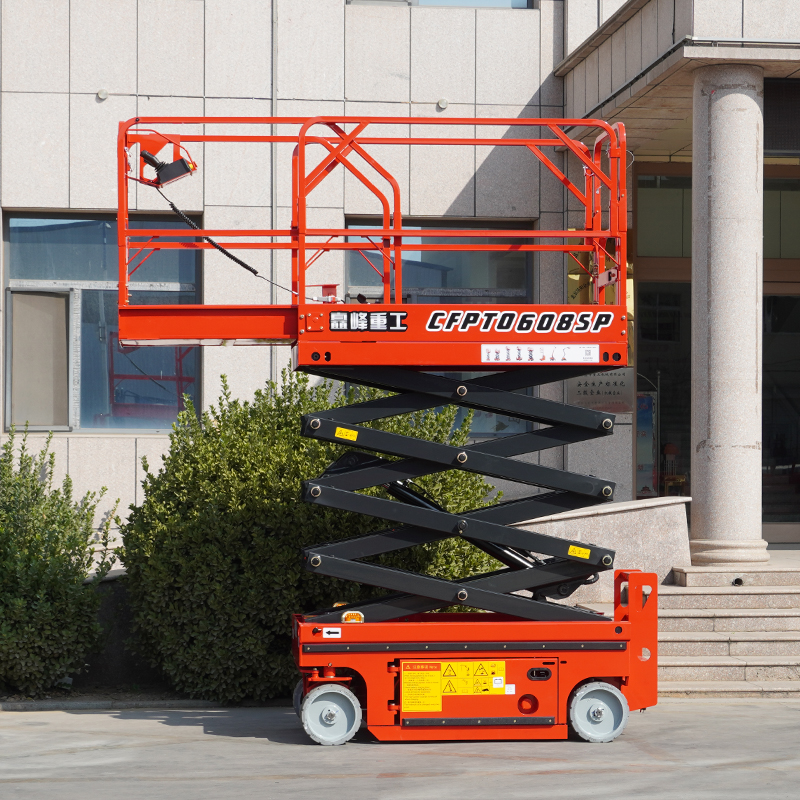

CFPT0608SP – Self-propelled Scissor Lifts
CFPT0608SP Self-propelled Scissor Lifts Advantages:
• Small turning radius and flexible operation.
• Battery-powered hydraulically driven powerful low noise suitable for indoor work.
• Equipped with single extension platform to expand the work scope and improve work efficiency.
• Small size light weight can enter and exit the passenger elevator at will special for the mezzanine floor of the building.
CFPT0608SP Self-propelled Scissor Lifts Parameters:
| Product Model | CFPT0608SP |
| Max.working Height | 7.8m |
| Max.platform Height | 5.8m |
| Overall Length | 1860mm |
| Overall Width | 768mm |
| Overall Height(Guardrail Unfolded) | 2150mm |
| Overall Height(Guardrail Folded) | 1795mm |
| Platform Size(Length) | 1670mm |
| Platform Size(Width) | 740mm |
| Platform Extension Size | 900mm |
| Wheelbase | 1355mm |
| Min.ground Clearance(Stowed) | 86mm |
| Min.ground Clearance(Rasied) | 16m |
| Load Capacity | 230kg |
| Extended Platform Loads | 113kg |
| Workers(Indoor/Outdoor) | 2/0 |
| Min.turning Radius(Inner Wheel) | 400mm |
| Min.turning Radius(Outer Wheel) | 1825mm |
| Lifting Motor | 24V/4.5kw |
| Machine Running Speed(Stowed) | 3km/h |
| Machine Running Speed(Rasied) | 0.8km/h |
| Rising/Descending Speed | 17/22sec |
| Gradeability | 25% |
| Max.working Slope | 1.5°/3° |
| Tyre | Φ305*100mm |
| Batteries | 4*6V/200Ah |
| Charger | 24V/36A |
| Weight | 1580kg |
Standard Configuration
• Proportional Control
• Self-Lock Gate On Platform
• Extension Platform
• Full Height Walking
• Non-Marking Tire
• 4×2 Drive
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Oil Pipe Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Hour Meter
• Safety Maintenance Support
• Standard Transport Forklift Hole
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
• Automatic Pit Protection
Optional Configuration
• Lithium Battery
• Overload Limit
• AC Power On the Platform
• Platform Work Light
• Chassis To Platform Air Duct
• Top Limit Protection
