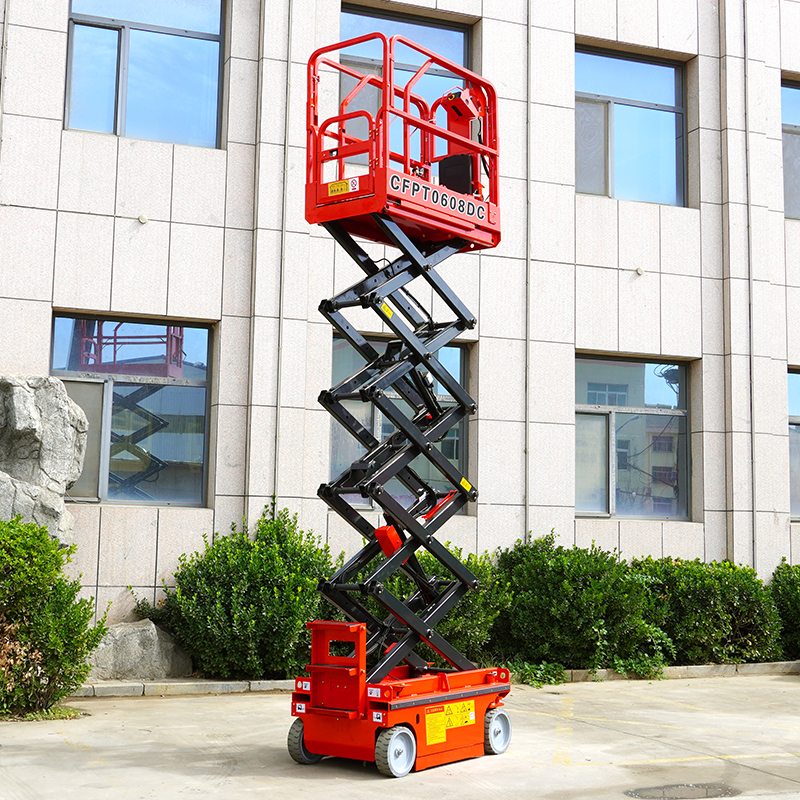

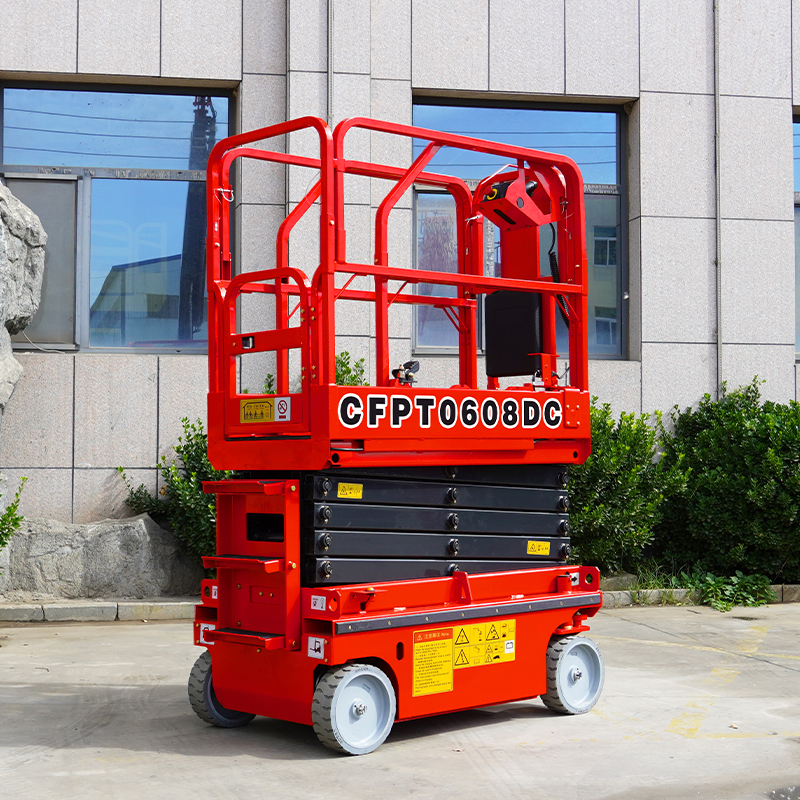

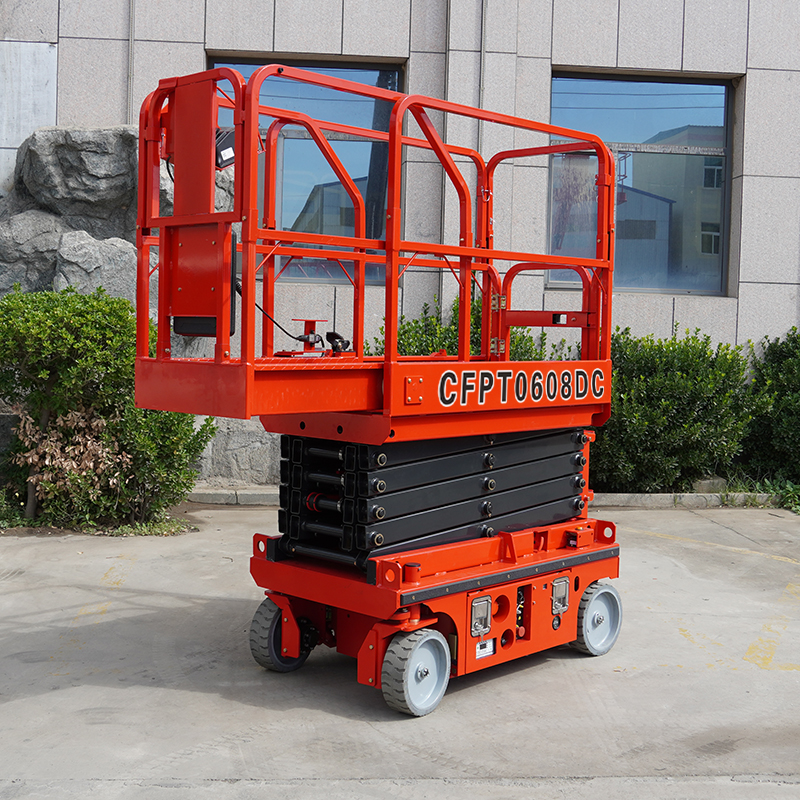

CFPT0608DC – Self-propelled Scissor Lifts
CFPT0608DC Self-propelled Scissor Lifts Advantages:
• Small turning radius and flexible operation.
• Climbing capacity of 25% strong power performance.
• Compact body with foldable guardrail for easy transportation.
• Small size light weight can enter and exit the passenger elevator at will special for the mezzanine floor of the building.
CFPT0608DC Self-propelled Scissor Lifts Parameters:
| Product Model | CFPT0608DC |
| Max.working Height | 7.6m |
| Max.platform Height | 5.6m |
| Overall Length | 1540mm |
| Overall Width | 810mm |
| Overall Height(Guardrail Unfolded) | 2195mm |
| Overall Height(Guardrail Folded) | 1830mm |
| Platform Size(Length) | 1370mm |
| Platform Size(Width) | 700mm |
| Platform Extension Size | 600mm |
| Wheelbase | 1130mm |
| Min.ground Clearance(Stowed) | 67mm |
| Min.ground Clearance(Rasied) | 17mm |
| Load Capacity | 240kg |
| Extended Platform Loads | 100kg |
| Workers(Indoor/Outdoor) | 2/0 |
| Min.turning Radius(Inner Wheel) | 480mm |
| Min.turning Radius(Outer Wheel) | 1670mm |
| Lifting Motor | 24V/1.2kw |
| Machine Running Speed(Stowed) | 4.5km/h |
| Machine Running Speed(Rasied) | 0.8km/h |
| Rising/Descending Speed | 34/28sec |
| Gradeability | 25% |
| Max.working Slope | 1.5°/3° |
| Tyre | Φ305*100mm |
| Batteries | 2*12V/115Ah |
| Charger | 24V/15A |
| Weight | 1260kg |
Standard Configuration
• Proportional Control
• Self-Lock Gate On Platform
• Extension Platform
• Full Height Walking
• Non-Marking Tire
• 4×2 Drive
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Oil Pipe Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Hour Meter
• Safety Maintenance Support
• Standard Transport Forklift Hole
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
• Automatic Pit Protection
Optional Configuration
• Lithium Battery
• Overload Limit
• AC Power On the Platform
• Platform Work Light
• Chassis To Platform Air Duct
• Top Limit Protection
