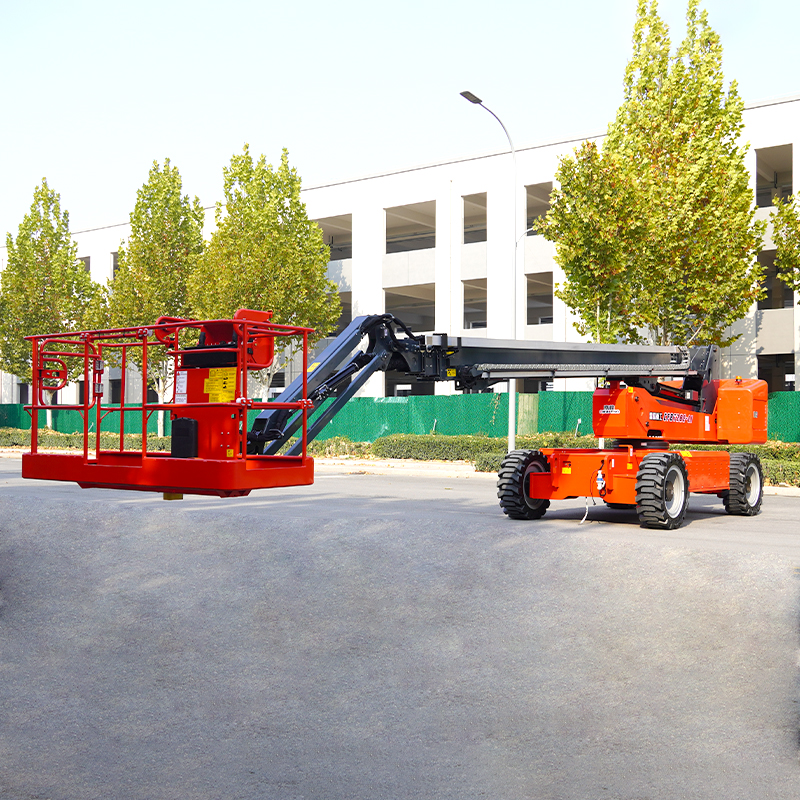

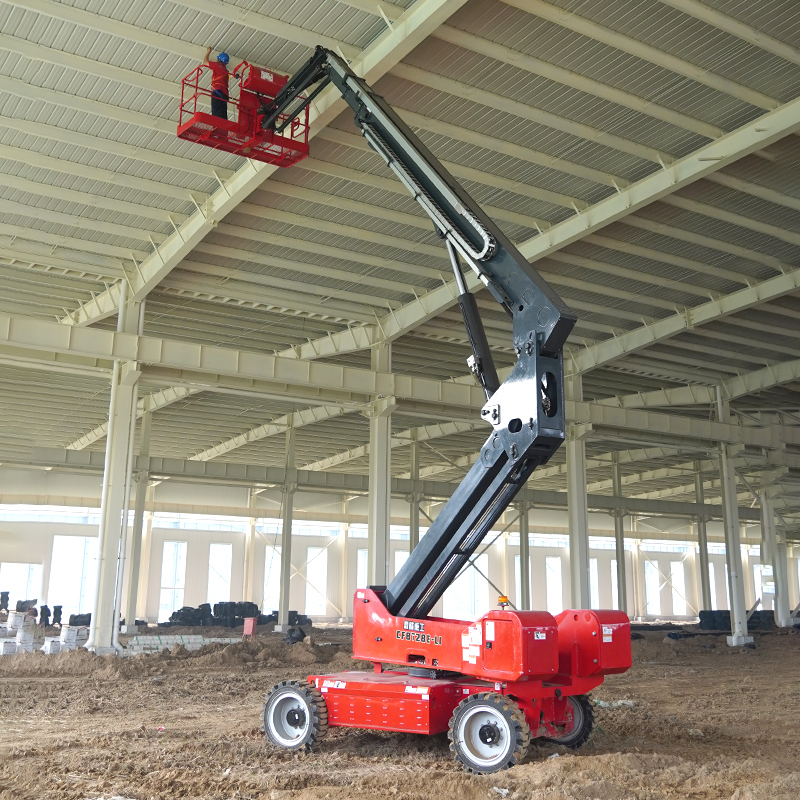

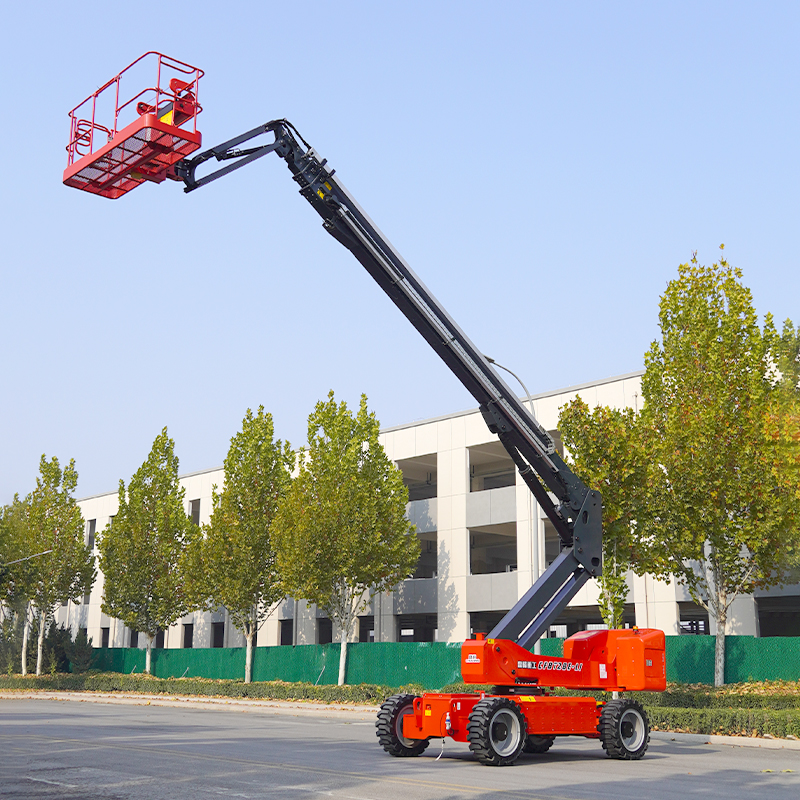

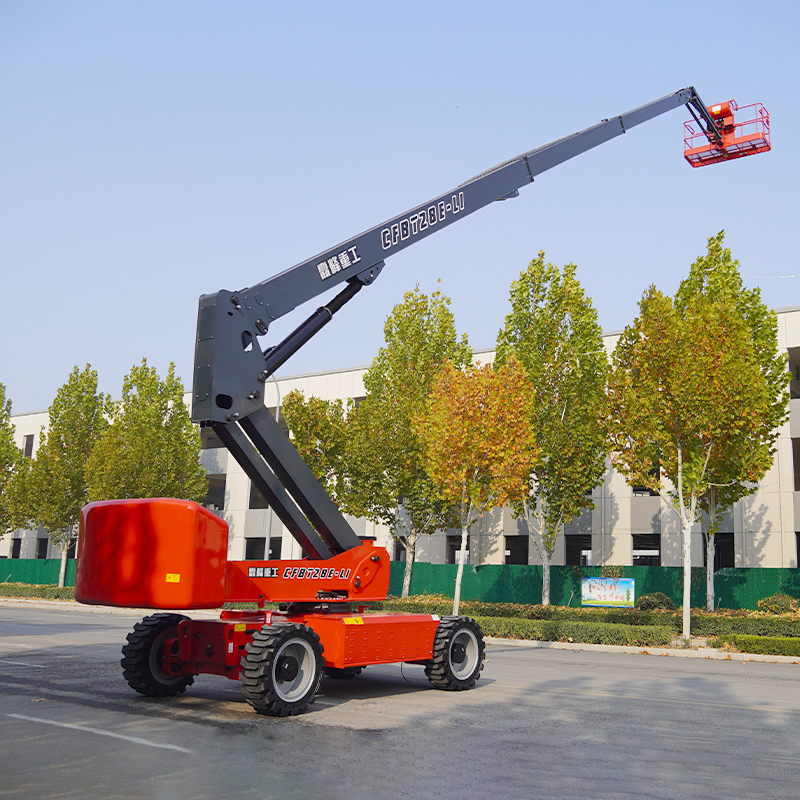

CFBT28E-Li – Electric Telescopic Boom Lifts
CFBT28E-Li – Telescopic Boom Lifts Advantages:
• Energy saving, zero-emission and little maintenance cost.
• Wide working range with a large load capacity of up to 460kg.
• Strong four-wheel off-road ability to adapt to multiple terrains.
• Complete safety protection device to guarantee workers’ safety.
CFBT28E-Li – Telescopic Boom Lifts Parameters:
| Model | CFBT28E-Li |
| Loading Capacity(Unlimited/2 persons and tools) | 300kg/460kg |
| Max.platform Height | 26.9m |
| Max.working Height | 28.8m |
| Max. horizontal Outreach | 14.15m |
| Overall Length(Stowed) | 12.03m |
| Overall Width(Stowed) | 2.49m |
| Overall Height(Stowed) | 2.89m |
| Wheelbase | 3.02m |
| Ground Clearance | 0.36m |
| Platform Dimension(L×W×H) | 2.44*0.91*1.3m |
| Rotation Angle Of Turntable | 360° |
| Rotation Angle Of Platform | 160° |
| Drive Speed(Stowed) | 4km/h |
| Drive Speed(Raised) | 0.8km/h |
| Gradeability | 45% |
| Turning Radius(Inside) | 3.3m |
| Turning Radius(Outside) | 6.7m |
| Rotary Table Tailswept | 1.98m |
| Max.working Slope | 5° |
| Drive×Steer | 4WD*2WS |
| Tire Type | 1015*380/Solid tires |
| Drive Motor Power | 5.5KW |
| Pump Motor Power | 26KW |
| Battery | 76.8V/560Ah |
| Control Voltage | 12V |
| Hydraulic Oil Tank | 100L |
| Weight | 16600kg |
Standard Configuration
• Floating Bridge
• Four-wheel Brake
• Weighing System
• Voice Broadcast
• Platform Rotation
• 7 Inch Smart Screen
• T-BOX(GPS)
• Emergency Descent System
• Fault Diagnosis System
• Tilt Protection System
• Emergency Stop System
• Four-wheel Drive/Two-wheel Steering
• Automotive Grade Full Tube Sheath Protection
• Maximum Allowable Operating Inclination Of 5°
• Rear Inspection And Driving Confirmation
• Rotating Alarm Light Safety Warning
• Horn And Buzzer Safety Warning
• Hydraulic Leveling Of Work Platform
• Mechanical Release Of Traveling Brake
Optional Configuration
▪ File Box
▪ Lithium Battery
▪ Anti-collision Device
▪ Lead-acid Battery
▪ Traceless Tyre
▪ Solid Tyre
▪ Install Working Lights On The Platform
▪ Anti-pinch Device
▪ Install AC Power Cord On The Platform
▪ Tool Box (Only For Swing Door Working Guardrail)
▪ Half-height fence (Only For Swing Door Working Guardrail)
▪ Glass Bracket (Only For Swing Door Working Guardrail)
