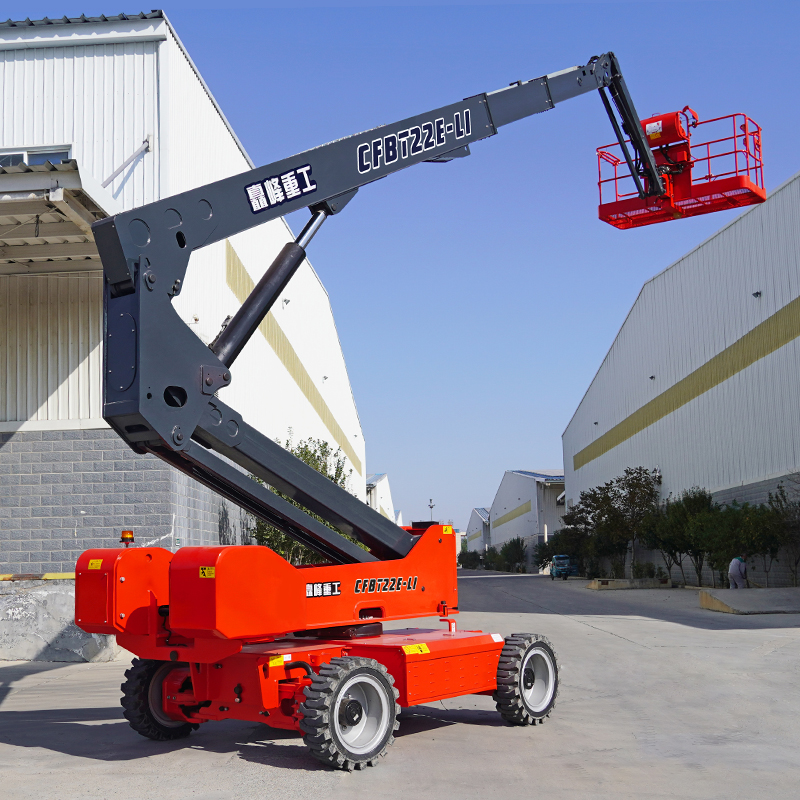

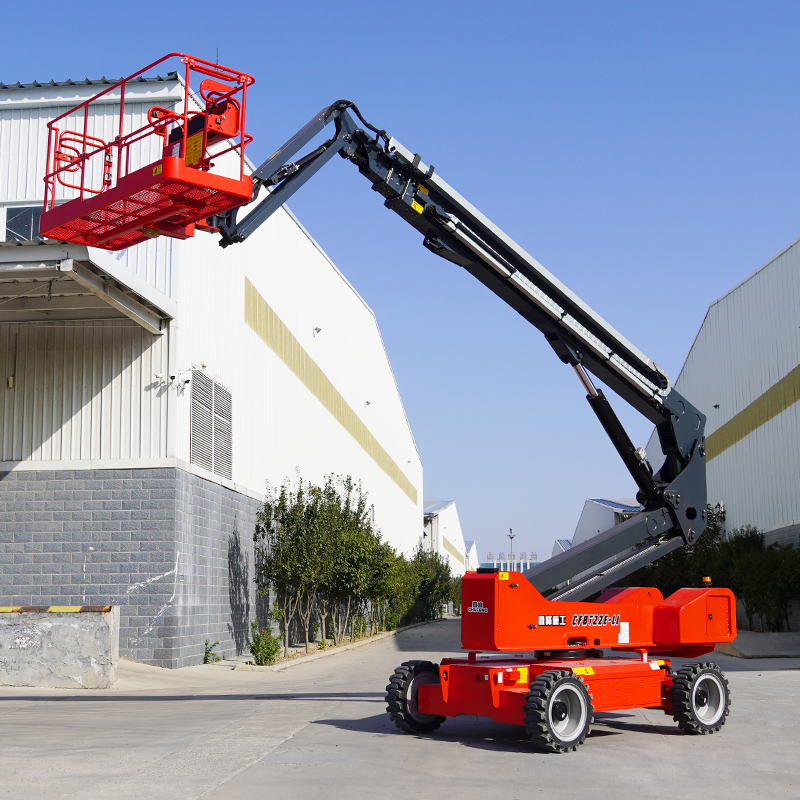

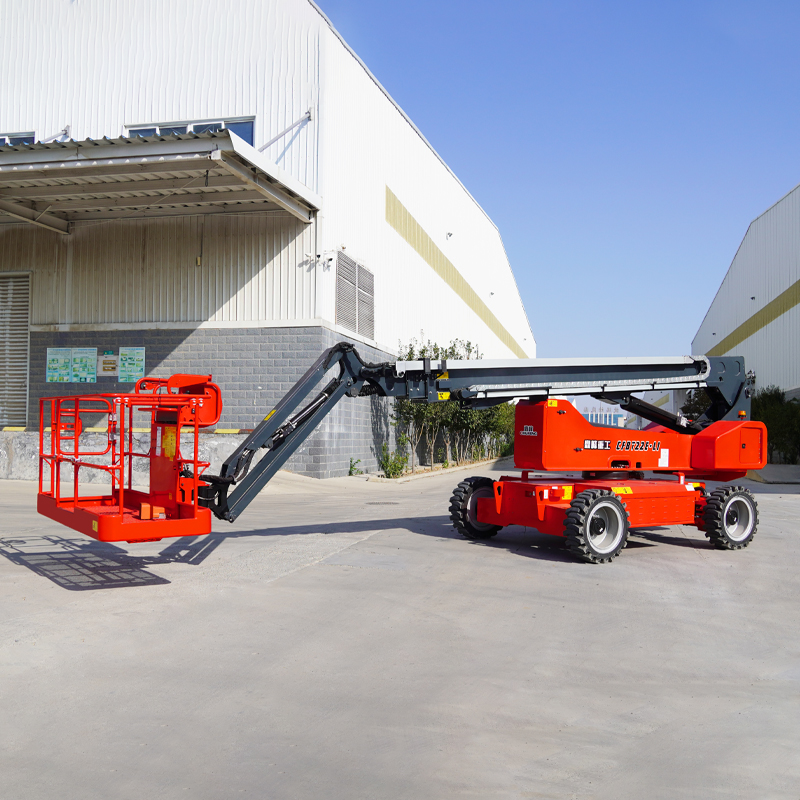

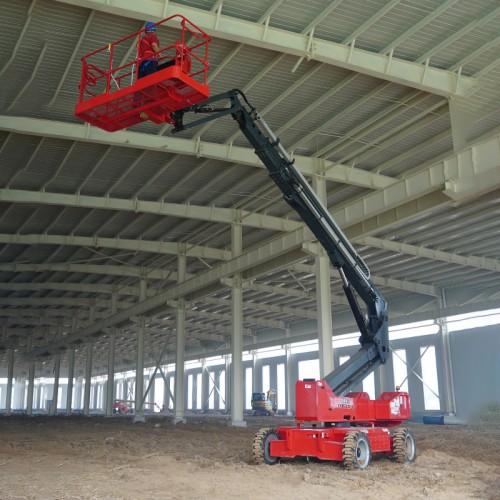

Model | CFBT21E-Li |
Loading Capacity(Unlimited/2 persons and tools) | 320kg |
Max. working Height | 20.5m |
Max. platform Height | 18.5m |
Max. horizontal Reach | 12.4m |
Overall Length(Stowed) | 9.6m |
Overall Width(Stowed) | 2.5m |
Overall Height(Stowed) | 2.72m |
Wheelbase | 2.5m |
Min. ground Clearance | 0.26m |
Platform Dimensions(L*W*H) | 2.44*0.91*1.3m |
Rotation Angle Of Turntable | 360° |
Rotation Angle Of Platform | 160° |
Machine Running Speed(Stowed) | 5km/h |
Machine Running Speed(Raised) | 0.8km/h |
Gradeability | 45% |
Min, turning Radius (lnner Wheel) | 3.6m |
Min. tuming Radius (Outer Wheel) | 4.7m |
Turntable Tail Swing | 1.65m |
Tit Rating | 5° |
Drive*Steer | 4WD*2WS |
Tire Spec/Type | 840*274/Solid Tire |
Drive Motor Power | 30KW |
Pump Motor Power | 20KW |
Battery | 76.8V/230AH |
Control Voltage | 12VDC |
Charger | 80V/40A |
Hydraulic Oil Tank | 125L |
Weight | 8330kg |
Standard Configuration
• Floating Bridge
• Four-wheel Brake
• Weighing System
• Voice Broadcast
• Platform Rotation
• 7 Inch Smart Screen
• T-BOX(GPS)
• Emergency Descent System
• Fault Diagnosis System
• Tilt Protection System
• Emergency Stop System
• Four-wheel Drive/Two-wheel Steering
• Automotive Grade Full Tube Sheath Protection
• Maximum Allowable Operating Inclination Of 5°
• Rear Inspection And Driving Confirmation
• Rotating Alarm Light Safety Warning
• Horn And Buzzer Safety Warning
• Hydraulic Leveling Of Work Platform
• Mechanical Release Of Traveling Brake
Optional Configuration
▪ File Box
▪ Lithium Battery
▪ Anti-collision Device
▪ Lead-acid Battery
▪ Traceless Tyre
▪ Solid Tyre
▪ Install Working Lights On The Platform
▪ Anti-pinch Device
▪ Install AC Power Cord On The Platform
▪ Tool Box (Only For Swing Door Working Guardrail)
▪ Half-height fence (Only For Swing Door Working Guardrail)
▪ Glass Bracket (Only For Swing Door Working Guardrail)
